Premia ES

New, Power Pallet Trucks
Product Sheet
Range brochure

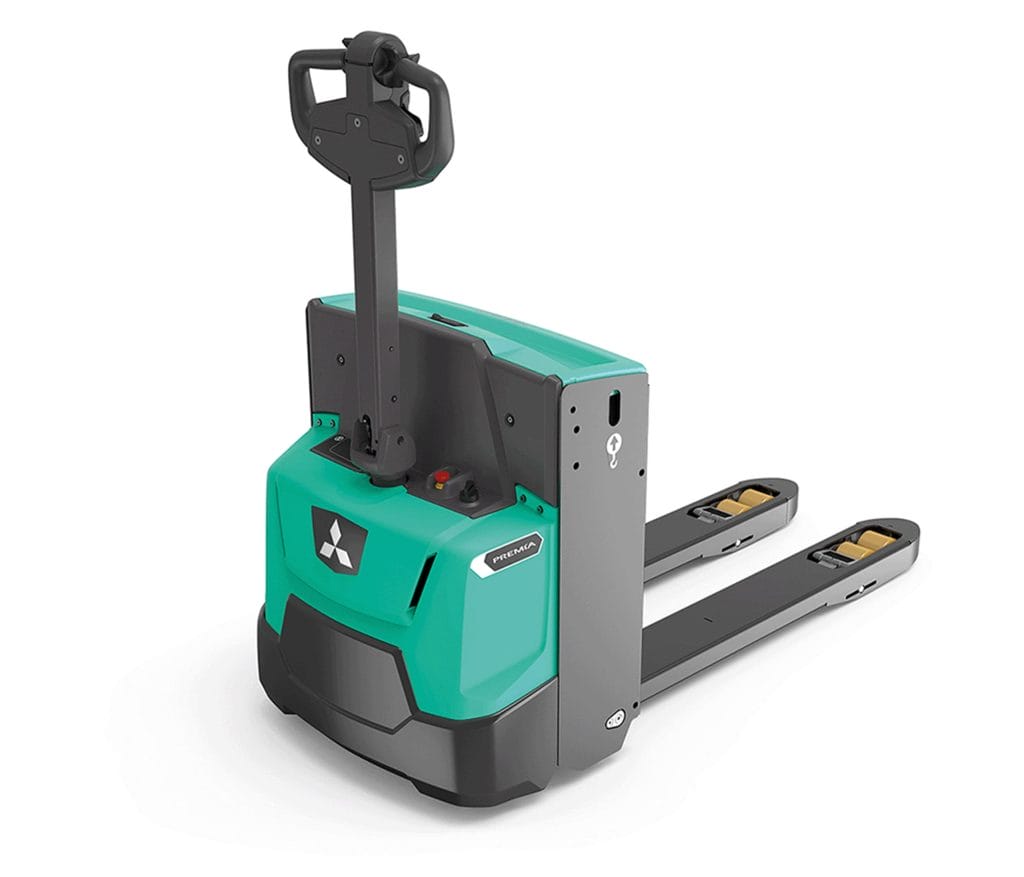

Mitsubishi PREMiA ES PBP20N3 / PBP12N2D – Overview These pedestrian power pallet trucks are compact and made for tight spots. Built tough with a sealed chassis and waterproof electrics, they can handle cold stores, damp conditions, and rough loading bays. Smooth acceleration, low-noise operation, and strong hill starts come built-in.

Sealed, Weather-Resistant Chassis

The sealed chassis helps boost uptime and keep productivity high - even in tough working conditions.

Heavy-Duty Cast Iron Drive Unit

Built for industrial use, the robust cast iron drive unit features gears running in an oil bath - delivering long-lasting durability and reliable performance.

Weatherproof Comfort Tiller

IP65-rated weatherproof tiller head with well-placed, easy-to-reach controls—designed to boost comfort and reduce operator fatigue.

Slim Chassis Design

The slim chassis lets the machine operate in much tighter aisles. This frees up storage space and improves safety during operation.

Durable Steel Battery Cover

The solid, hingeless steel cover eliminates one of the most common causes of breakdown in power pallet trucks.

Creep Speed Mode with Tiller Arm Bypass

Allows the truck to operate with the tiller arm in the upright position, improving manoeuvrability in tight spaces and boosting productivity.

Smart Programmable Controller

Uses 30% fewer wires and switches, improving durability, reliability, and uptime. Comes with standard ECO and PRO modes to match performance to the task.

Heavy-Duty Forks with Entry Rollers

Welded fork design with oversized bearings delivers strength and reliability for consistent performance in demanding applications.

Stable Drive and Castor System

Linked castor wheels and a central drive wheel provide excellent stability during high-speed shuttling and on loading bays. This protects loads and reduces wear and tear on the castor wheels.

KEY FEATURES

Sealed, Weather-Resistant Chassis

The sealed chassis helps boost uptime and keep productivity high, even in tough working conditions.

Heavy-Duty Cast Iron Drive Unit

Built for industrial use, the robust cast iron drive unit features gears running in an oil bath, delivering long-lasting durability and reliable performance.

Weatherproof Comfort Tiller

IP65-rated weatherproof tiller head with well-placed, easy-to-reach controls, designed to boost comfort and reduce operator fatigue.

Heavy-Duty Forks with Entry Rollers

Welded fork design with oversized bearings delivers strength and reliability for consistent performance in demanding applications.

Stable Drive and Castor System

Linked castor wheels and a central drive wheel provide excellent stability during high-speed shuttling and on loading bays. This protects loads and reduces wear and tear on the castor wheels.

KEY FEATURES

This truck is perfect for...

Perfect for smaller warehouses, retail stockrooms, and businesses working in tight or wet areas. If you’re after a simple, reliable way to move pallets without fuss, this is it.

Detailed specification

Download Full Spec
Request Callback
Model
PBP16N3
PBP18N3
PBP20N3
PBP20N3R
PBP20N3E
Power Source
Electric
Electric
Electric
Electric
Electric
Operator Type
Pedestrian
Pedestrian
Pedestrian
Stand-on (folding platform)
Pedestrian
Load Capacity (kg)
1600 kg
1800 kg
2000 kg
2000 kg
2000 kg
Load Centre Distance (mm)
600 mm
600 mm
600 mm
600 mm
600 mm
Load Distance - Axle to Forkface (mm)
960 mm
960 mm
960 mm
960 mm
890 mm
Wheelbase (mm)
1360 mm
1425 mm
1425 mm
1420 mm
1425 mm
Model
PBP16N3
PBP18N3
PBP20N3
PBP20N3R
PBP20N3E
Unladen Weight (kg)
430 kg
525 kg
500 kg
640 kg
585 kg
Axle Loading w/ Maximum Load - front/rear (kg)
745 / 1290 kg
805 / 1495 kg
840 / 1660 kg
950 / 1710 kg
815 / 1785 kg
Axle Loading no Load - front/rear (kg)
340 / 90 kg
380 / 120 kg
380 / 120 kg
505 / 135 kg
435 / 150 kg
Model
PBP16N3
PBP18N3
PBP20N3
PBP20N3R
PBP20N3E
Tyres
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Front Tyre Dimensions
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
Rear Tyre Dimensions
85 × 90 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
No. of Wheels
2 / 1× + 2
4 / 1x + 2
4 / 1x + 2
4 / 1x + 2
4 / 1x + 2
Truck Width (centre of tyres, front) mm
480 mm
480 mm
480 mm
480 mm
480 mm
Truck Width (centre of tyres, rear) mm
375 mm
375 mm
375 mm
375 mm
375 mm
Download Full Spec
Request Callback

Which truck is right for you?

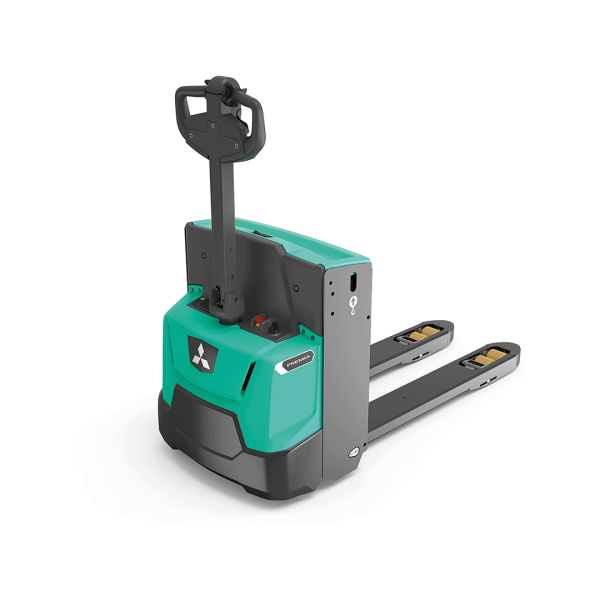

Premia ES PBP16-20N3(R)(E) Series section-min

PBP16N3

1.6 Tonne
Tonnes
5 Wheels
Wheels
AC Power
Power Source
600 mm
Load Centre
Premia ES PBP16-20N3(R)(E) Series section-min

PBP18N3

1.8 Tonne
Tonnes
5 Wheels
Wheels
AC Power
Power Source
600 mm
Load Centre
Premia ES PBP16-20N3(R)(E) Series section-min

PBP20N3

2.0 Tonne
Tonnes
5 Wheels
Wheels
AC Power
Power Source
600 mm
Load Centre
Premia ES PBP16-20N3(R)(E) Series section-min

PBP20N3R

2.0 Tonne
Tonnes
5 Wheels
Wheels
AC Power
Power Source
600 mm
Load Centre
Premia ES PBP16-20N3(R)(E) Series section-min

PBP20N3E

2.0 Tonne
Tonnes
5 Wheels
Wheels
AC Power
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Read the full story

Whatever you need, we can deliver

Frequently Asked Questions

The PREMIA ES is ideal for short-distance transport in warehouses, shops, and production areas. It handles pallet movements quickly and safely in tight spaces.
Its compact design and creep speed function allow precise control, even with the tiller arm in an upright position. This makes it perfect for narrow aisles and busy loading areas.
Depending on the model and workload, the PREMIA ES offers long operating times per charge. The truck also supports fast battery changes to keep downtime to a minimum.
The truck has a sealed chassis and robust fork construction, protecting key components from dirt and moisture. The advanced controller also reduces wiring complexity, improving overall durability.
