ELX Series Electric Sideloader

New, Sideloaders
The ELX Series Electric Sideloder is designed for exceptional efficiency in tight and space-restricted warehouse environments. Its compact, lightweight build combines with high-performance handling to provide excellent productivity in narrow aisles. Energy-efficient operation, easy service access, and robust safety features make the ELX Series a reliable choice for indoor logistics.

Ultra-compact chassis

Perfect for space-restricted areas and narrow aisles.

Energy-efficient design

Optimises battery life and reduces operating costs.

Wide range of models

Tailored capacities to suit varied application needs.

Excellent lift capacity

Supports high performance in compact chassis design.

Robust mast visibility

Clear line of sight to forks and load for safer handling.

Advanced drive technology

Combines smooth operation with precise control.

Low maintenance

Easy-access service points help reduce downtime.

Operator-friendly controls

Ergonomic design improves comfort and productivity.

Heavy-duty protective components

Designed for durability in busy environments.

KEY FEATURES

Ultra-compact chassis

Perfect for space-restricted areas and narrow aisles.

Excellent lift capacity

Supports high performance in compact chassis design.

Robust mast visibility

Clear line of sight to forks and load for safer handling.

Operator-friendly controls

Ergonomic design improves comfort and productivity.

Heavy-duty protective components

Designed for durability in busy environments.

KEY FEATURES

This truck is perfect for...

The ELX Series is ideal for businesses needing highly manoeuvrable forklifts for tight space handling. It is a perfect fit for logistics providers, retail warehouses, and manufacturing operations where compact design, low energy use, and high visibility are key.

Detailed specification

Model
ELX 30
ELX 40
ELX 50
Power Source
Electric
Electric
Electric
Load Capacity (kg)
3000 kg
4000 kg
5000 kg
Load Centre Distance (mm)
600 / 700 mm
600 / 700 mm
600 / 700 mm
Wheelbase (mm)
2420 mm
2420 mm
2420 mm
Model
ELX 30
ELX 40
ELX 50
Unladen Weight (kg)
8000 / 8500 kg
8700 / 9200 kg
9000 / 9500 kg
Axle Loading w/ Maximum Load - front/rear (kg)
7000 / 7500 kg
7500 / 8000 kg
8000 / 8500 kg
Axle Loading no Load - front/rear (kg)
7500 / 8000 kg
8000 / 8500 kg
8500 / 9000 kg
Model
ELX 30
ELX 40
ELX 50
Tyres
L (Pneumatic)
L (Pneumatic)
L (Pneumatic)
No. of Wheels
2 / 2
2 / 2
2 / 2
Truck Width (centre of tyres, front) mm
1200 = 1615 mm / 1400 = 1815 mm
1200 = 1615 mm / 1400 = 1815 mm
1650 / 1850 mm
Truck Width (centre of tyres, rear) mm
1200 = 1670 mm / 1400 1870 mm
1200 = 1670 mm / 1400 1870 mm
1650 / 1850 mm

Which truck is right for you?

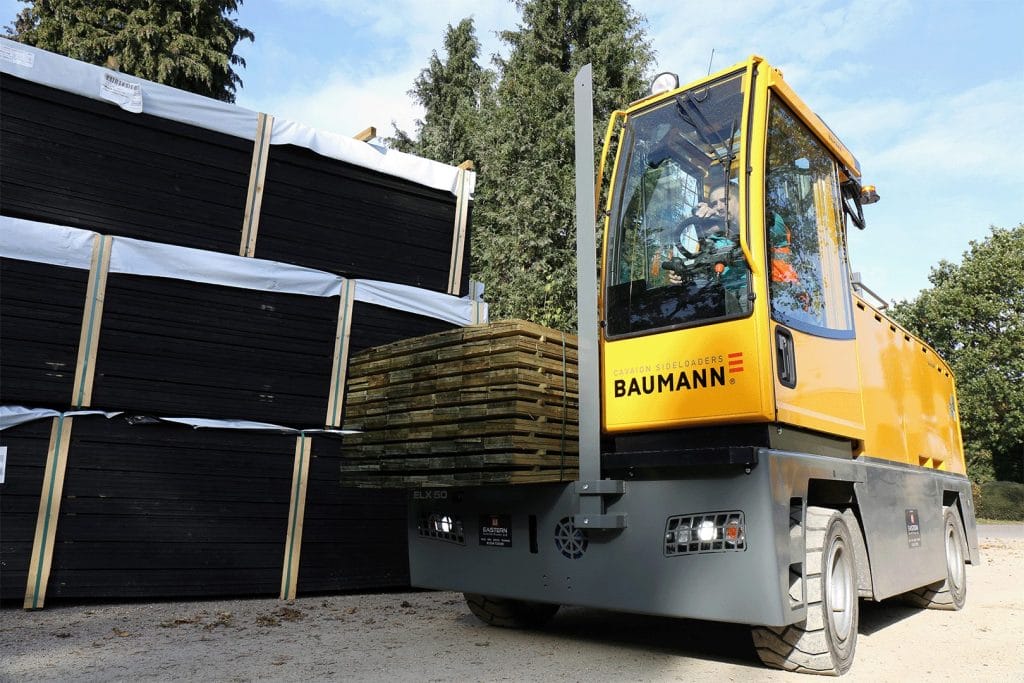

ELX Image-min

EXL 30

3.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600/700 mm
Load Centre
ELX Image-min

EXL 40

4.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600/700 mm
Load Centre
ELX Image-min

EXL 50

5.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600/700 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

It is designed for indoor applications where space is limited, such as retail warehouses, distribution centres, and compact manufacturing facilities.
Yes. The ELX Series is built with energy efficiency in mind, helping extend battery life and reduce running costs.
It offers ergonomic controls, excellent visibility, and smooth drive characteristics, all helping reduce operator fatigue.
Yes. Key service points are easily accessible, helping to reduce downtime and maintenance time.
