EGX Series Electric Sideloader

New, Sideloaders
The EGX Series Electric Sideloader is designed for efficient operation in narrow aisles and high-bay warehouses. It combines precision handling with advanced safety features and reliable performance. The robust design ensures maximum uptime, while its energy-efficient systems help reduce running costs. With excellent lift capacity and precise load control, it is ideal for demanding indoor logistics and warehousing applications.

Highly optimised VNA design

Delivers exceptional productivity in narrow aisles with low maintenance needs.

Lift heights up to 19 metres

Supports efficient use of vertical warehouse space.

Quick and simple maintenance

Easily accessible service points help reduce downtime.

Choice of 7 capacities

Tailored models to suit a wide range of VNA operational needs.

Adjustable fork spacing

Operator-controlled fork positioner allows fast, flexible load handling.

Precision drive technology

Advanced drive system provides smooth and accurate handling.

Heavy-duty motor and steering protection

Steel shielding helps prevent damage from busy warehouse operations.

Tilting side gates (option)

Improve operator reach and comfort by reducing distance to shelf by up to 20 cm.

Flexible control options

Choose from twist grips, lever controls, or integrated armrest controls to suit operator preferences.

KEY FEATURES

Lift heights up to 19 metres

Supports efficient use of vertical warehouse space.

Adjustable fork spacing

Operator-controlled fork positioner allows fast, flexible load handling.

Precision drive technology

Advanced drive system provides smooth and accurate handling.

Heavy-duty motor and steering protection

Steel shielding helps prevent damage from busy warehouse operations.

Flexible control options

Choose from twist grips, lever controls, or integrated armrest controls to suit operator preferences.

KEY FEATURES

This truck is perfect for...

The EGX Series is well-suited for companies that require high-density storage capabilities and efficient handling in narrow aisle environments. It is ideal for businesses in logistics, distribution, retail warehousing, and manufacturing sectors where space optimisation and safe, high-performance material handling are key priorities.

Detailed specification

Model
EGX 50
EGX 60
EGX 70
EGX 80 L
Power Source
Electric
Electric
Electric
Electric
Load Capacity (kg)
5000 kg
6000 kg
7000 kg
8000 kg
Load Centre Distance (mm)
600 / 700 mm
600 / 700 mm
600 / 700 mm
600 / 700 mm
Wheelbase (mm)
2980 mm
2980 mm
2980 mm
2980 mm
Model
EGX 50
EGX 60
EGX 70
EGX 80 L
Unladen Weight (kg)
11,000 / 11,500 kg
11500 / 12000 kg
12000 / 12500 kg
13000 / 13500 kg
Axle Loading w/ Maximum Load - front/rear (kg)
9250 / 9500 kg
9250 / 9500 kg
10,100 / 10,500 kg
11,200 / 11,400 kg
Axle Loading no Load - front/rear (kg)
10,250 / 10,500 kg
10,250 / 10,500 kg
10,500 / 11,000 kg
11,600 / 11,900 kg
Model
EGX 50
EGX 60
EGX 70
EGX 80 L
Tyres
L (Pneumatic)
L (Pneumatic)
L (Pneumatic)
L (Pneumatic)
No. of Wheels
2 / 2
2 / 2
2 / 2
2 / 2
Truck Width (centre of tyres, front) mm
1200 = 1640 mm / 1400 = 1840 mm
1200 = 1640 mm / 1400 = 1840 mm
1200 = 1640 mm / 1400 = 1840 mm
1200 = 1640 mm / 1400 = 1840 mm
Truck Width (centre of tyres, rear) mm
1200 = 1670 mm / 1400 = 1870 mm
1200 = 1670 mm / 1400 = 1870 mm
1200 = 1670 mm / 1400 = 1870 mm
1200 = 1670 mm / 1400 = 1870 mm

Which truck is right for you?

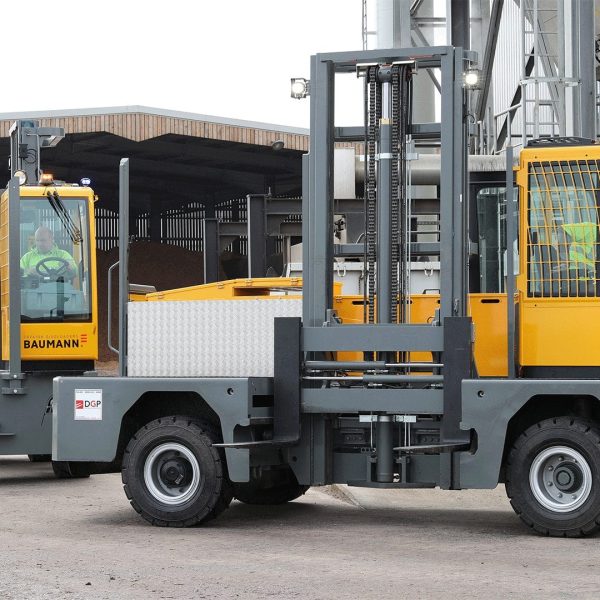

EGX image-min

EGX 50

5.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600/700 mm
Load Centre
EGX image-min

EGX 60

6.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600/700 mm
Load Centre
EGX image-min

EGX 70

7.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600/700 mm
Load Centre
EGX image-min

EGX 80

8.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600/700 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

The EGX Series offers lift heights of up to 19 metres, making it ideal for high-bay warehousing and vertical storage optimisation.
The truck is designed with easily accessible maintenance points and a robust protective design, helping reduce servicing time and extend component life.
Yes. It is purpose-built for Very Narrow Aisle (VNA) environments, offering precise handling and high manoeuvrability in tight spaces.
The EGX Series offers tilting side gates (optional), precision controls, and excellent all-around visibility to help reduce operator fatigue and improve comfort during long shifts.
