EDiA EX

Electric, New

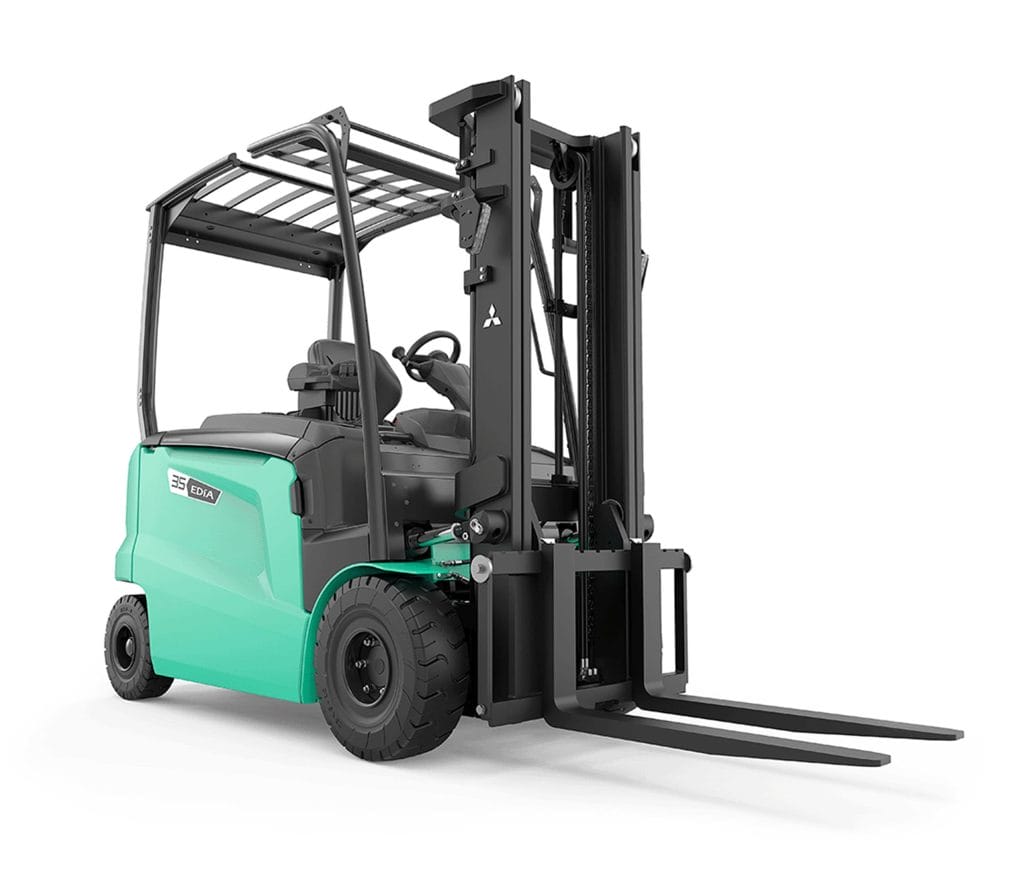

The Mitsubishi EDiA EX FB35AN is a 3.5-tonne electric forklift combining robust performance with advanced technology. Its four-wheel steering provides excellent manoeuvrability, while the Intelligent Cornering System and Adaptive Lift Control ensure smooth and safe handling of loads. The truck’s design offers enhanced visibility and intuitive controls for the operator

Four Wheel Steering (4WS)

This improves grip and control, especially in tight areas, by letting the truck turn smoothly and sharply on the spot.

Intelligent Cornering System

The truck slows earlier during turns, making cornering smoother and safer.

Adaptive Lift Control (ALC)

Adaptive Lift Control (ALC) lets operators lower loads smoothly and with fewer adjustments - keeping movements quick, precise, and steady no matter the load weight.

Oil-immersed wet disc brakes

The brakes stay engaged by default and only release when the operator is seated and presses the accelerator. They’re maintenance-free, produce no brake dust, and are ideal for clean indoor environments.

AutoBoost

The truck detects when extra power is needed and automatically boosts acceleration and torque for stronger performance.

Red Dot design award winner

The Red Dot award is a global symbol of top design - celebrating excellence in looks, function, and innovation. The truck’s next-gen design, advanced features, and standout ergonomics impressed the expert jury.

Electric differential lock

When activated, the electric differential lock improves traction by turning both front wheels together. It can be set to kick in automatically at low speeds or limited steering angles.

Integrated Presence System (IPS2)

Boosts safety by cutting off hydraulic and drive functions if the operator is not in the seat for more than 2 seconds.

Automatic Hill Hold

AHH stops rollback on steep ramps, even when fully loaded - making loading and unloading safer, quicker, and helping protect both operator and load.

Selectable 'Eco' or 'Pro' modes

The energy-saving ECO mode gives new operators more time to manoeuvre, while PRO mode unlocks high-performance settings for experienced drivers.

Sensitive Drive System+ (SDS+)

This driver-assist system adjusts automatically to the operator’s input, fine-tuning performance to boost both safety and productivity.

KEY FEATURES

Four Wheel Steering (4WS)

This improves grip and control, especially in tight areas, by letting the truck turn smoothly and sharply on the spot.

Adaptive Lift Control (ALC)

Adaptive Lift Control (ALC) lets operators lower loads smoothly and with fewer adjustments, keeping movements quick, precise, and steady no matter the load weight.

AutoBoost

The truck detects when extra power is needed and automatically boosts acceleration and torque for stronger performance.

Electric differential lock

When activated, the electric differential lock improves traction by turning both front wheels together. It can be set to kick in automatically at low speeds or limited steering angles.

Automatic Hill Hold

AHH stops rollback on steep ramps, even when fully loaded, making loading and unloading safer, quicker, and helping protect both operator and load.

KEY FEATURES

This truck is perfect for...

The EDiA EX FB35AN is suitable for businesses handling heavy loads in tight spaces, such as warehouses and manufacturing facilities. Its combination of strength and agility makes it a versatile tool for various material handling tasks.

Detailed specification

Model
FB25AN
FB25ACN
FB30AN
FB30ACN
FB35AN
Power Source
Electric
Electric
Electric
Electric
Electric
Operator Type
Seated
Seated
Seated
Seated
Seated
Load Capacity (kg)
2500 kg
2500 kg
3000 kg
3000 kg
3500 kg
Load Centre Distance (mm)
500 mm
500 mm
500 mm
500 mm
500 mm
Load Distance - Axle to Forkface (mm)
476 mm
476 mm
504 mm
504 mm
504 mm
Wheelbase (mm)
1730 mm
1585 mm
1730 mm
1585 mm
1730 mm
Model
FB25AN
FB25ACN
FB30AN
FB30ACN
FB35AN
Unladen Weight (kg)
4737 kg
4584 kg
5230 kg
5222 kg
5654 kg
Axle Loading w/ Maximum Load - front/rear (kg)
6301 / 937 kg
6296 / 788 kg
7348 / 882 kg
7351 / 870 kg
8183 / 971 kg
Axle Loading no Load - front/rear (kg)
2390 / 2347 kg
2256 / 2328 kg
2607 / 2623 kg
2450 / 2771 kg
2651 / 3002 kg
Model
FB25AN
FB25ACN
FB30AN
FB30ACN
FB35AN
Tyres
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
Front Tyre Dimensions
23 × 9 - 10
23 × 9 - 10
23 × 10 - 12
23 × 10 - 12
23 × 10 - 12
Rear Tyre Dimensions
18 × 7 - 8
18 × 7 - 8
18 × 7 - 8
18 × 7 - 8
18 × 7 - 8
No. of Wheels
2 x / 2
2 x / 2
2 x / 2
2 x / 2
2 x / 2
Truck Width (centre of tyres, front) mm
985 mm
985 mm
950 mm
950 mm
950 mm
Truck Width (centre of tyres, rear) mm
970 mm
970 mm
970 mm
970 mm
970 mm

Which truck is right for you?

EDiA EX featured-min

FB25AN

2.5 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre
EDiA EX featured-min

FB25ACN

2.5 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre
EDiA EX featured-min

FB30AN

3.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre
EDiA EX featured-min

FB30ACN

3.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre
EDiA EX featured-min

FB35AN

3.5 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

It can lift up to 3.5 tonnes, making it a strong choice for heavy-duty applications that need clean, quiet, and powerful electric performance.
Yes. With its sealed wet disc brakes, weatherproof chassis, and rugged build, the EDiA EX performs reliably both indoors and outdoors – even in harsh conditions.
It includes adaptive hydraulic and drive controls, ergonomic seating, and responsive steering to reduce fatigue and give operators more precise control throughout the shift.
With ECO and PRO drive modes, regenerative braking, and an energy-efficient design, it helps reduce power use while still delivering strong, consistent performance.
