EDiA EM (4 Wheels)

Counterbalance Forklifts, Electric, New

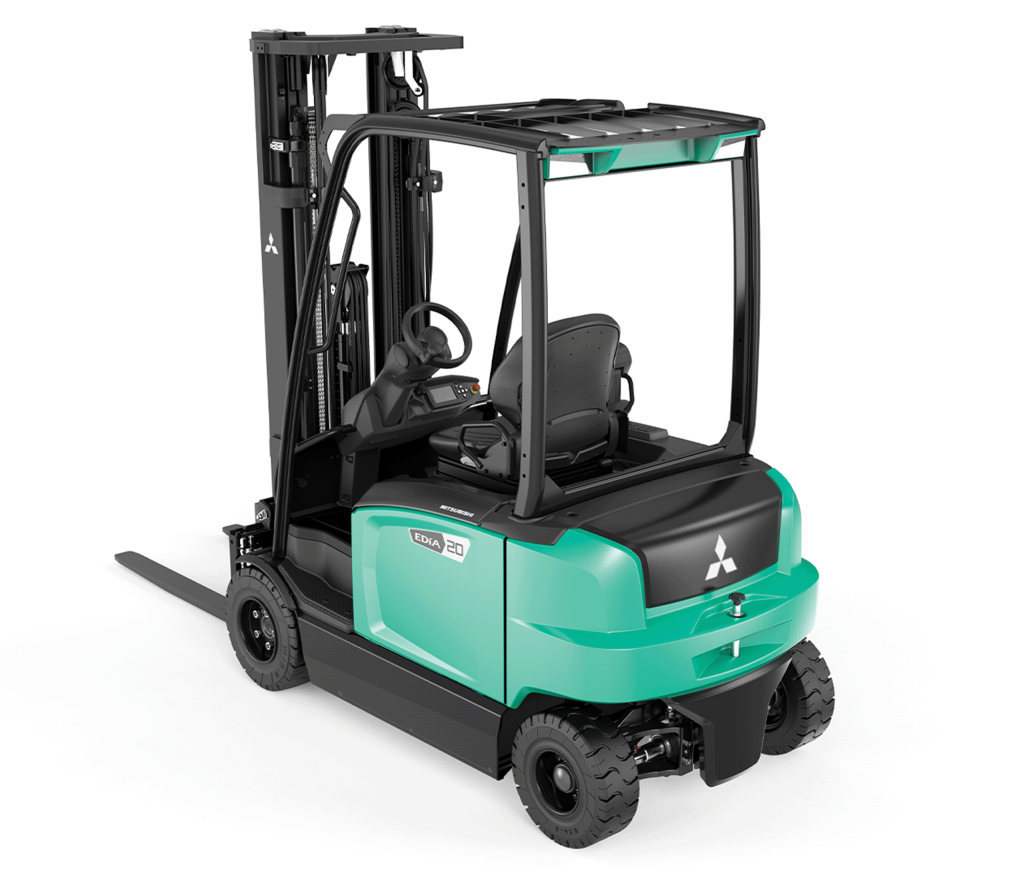

The Mitsubishi EDiA EM FB20N2 is a 2.0-tonne, 4-wheel electric forklift offering stability and intelligent performance. Equipped with features like AutoBoost for additional power when needed, and a mini steering wheel with a floating armrest for operator comfort, it ensures efficient and safe operations. The truck’s design minimizes fatigue and reduces the risk of repetitive strain injuries.

Sensitive Drive System+ (SDS+)

This system reacts to each operator’s input, adjusting performance automatically to boost both safety and productivity.

Steering wheel with floating armrest

The adjustable controls are designed for comfort during long shifts. They help reduce fatigue, keep operators focused, and lower the risk of strain injuries that often lead to time off and added costs.

AutoBoost

The truck automatically delivers extra acceleration and torque when it senses the need for more power.

Automatic Hill Hold

AHH stops the truck from rolling back on steep ramps, even under full load. It makes loading and unloading safer, faster, and helps protect both the operator and the goods.

Four Wheel Steering (4WS)

This improves grip and handling - letting the truck turn quickly and smoothly, even in tight spaces.

Red Dot design award winner

The Red Dot award is a global mark of top-quality design - recognising excellence in looks, function, and innovation. The truck’s modern design, advanced features, and top-tier ergonomics stood out to the expert judges.

Electric differential lock

When activated, the electric differential lock delivers maximum traction by turning both front wheels together. It can also be set to engage automatically at low speeds or when steering is limited.

Li-ion battery

This option supports fast charging with low upkeep - removing the need for extra batteries or time lost on changeovers.

Intelligent Cornering System

Automatically adjusts the truck’s speed based on steering angle—improving safety, boosting productivity, and reducing tyre wear.

Passive Sway Control

The chassis reduces mast sway, giving operators more stability and control when lifting to higher levels.

Dual joysticks

The ergonomic dual joysticks let operators lift and tilt at the same time, with a secure grip that works well even with gloves on.

KEY FEATURES

Mini steering wheel with floating armrest

The adjustable controls are designed for comfort during long shifts. They help reduce fatigue, keep operators focused, and lower the risk of strain injuries that often lead to time off and added costs.

Four Wheel Steering (4WS)

This improves grip and handling, letting the truck turn quickly and smoothly, even in tight spaces.

Passive Sway Control

The chassis reduces mast sway, giving operators more stability and control when lifting to higher levels.

Operate In Comfort

The adjustable controls are designed for comfort during long shifts. They help reduce fatigue, keep operators focused, and lower the risk of strain injuries that often lead to time off and added costs.

Dual joysticks

The ergonomic dual joysticks let operators lift and tilt at the same time, with a secure grip that works well even with gloves on.

KEY FEATURES

This truck is perfect for...

The EDiA EM FB20N2 suits businesses requiring stable and efficient material handling, such as distribution centres and manufacturing plants. Its ergonomic features and intelligent systems make it a reliable choice for operations focused on operator well-being and productivity.​

Detailed specification

Model
FB16CN2
FB18CN2
FB16N2
FB18N2
FN20N2
Power Source
Electric
Electric
Electric
Electric
Electric
Operator Type
Seated
Seated
Seated
Seated
Seated
Load Capacity (kg)
1600 kg
1800 kg
1600 kg
1800 kg
2000 kg
Load Centre Distance (mm)
500 mm
500 mm
500 mm
500 mm
500 mm
Load Distance - Axle to Forkface (mm)
343 mm
343 mm
343 mm
343 mm
358 mm
Wheelbase (mm)
13942 mm
13942 mm
15022 mm
15022 mm
1502 mm
Model
FB16CN2
FB18CN2
FB16N2
FB18N2
FN20N2
Unladen Weight (kg)
2944 kg
3114 kg
2957 kg
3097 kg
3287 kg
Axle Loading w/ Maximum Load - front/rear (kg)
3990 / 554 kg
4311 / 603 kg
4008 / 550 kg
4295 / 603 kg
4668 / 620 kg
Axle Loading no Load - front/rear (kg)
1422 / 1522 kg
1422 / 1692 kg
1510 / 1448 kg
1484 / 1613 kg
1525 / 1762 kg
Model
FB16CN2
FB18CN2
FB16N2
FB18N2
FN20N2
Tyres
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
Front Tyre Dimensions
18 × 7-8
18 × 7-8
18 x 7-8
18 x 7-8
200 / 50-10
Rear Tyre Dimensions
16 × 6-8
16 × 6-8
16 × 6-8
16 × 6-8
16×6-8
No. of Wheels
2 x / 2
2 x / 2
2 x / 2
2 x / 2
2 x / 2
Truck Width (centre of tyres, front) mm
930 mm
930 mm
930 mm
930 mm
938 mm
Truck Width (centre of tyres, rear) mm
898 mm
898 mm
898 mm
898 mm
898 mm

Which truck is right for you?

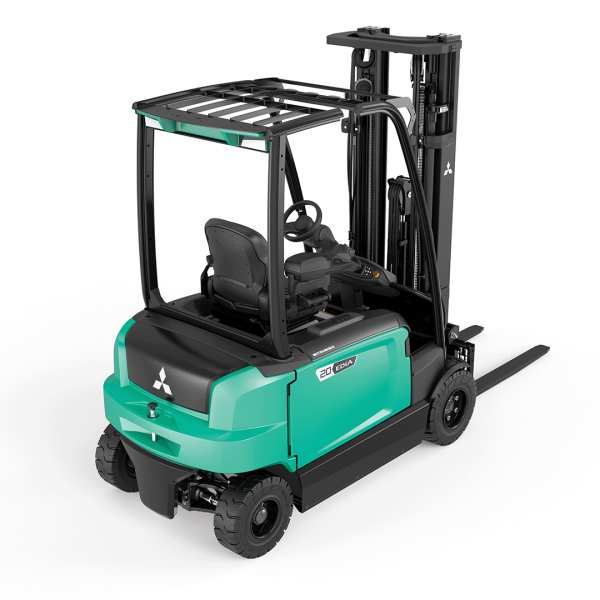

EDiA EM Alternate models-min

FB16CN2

1.6 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre

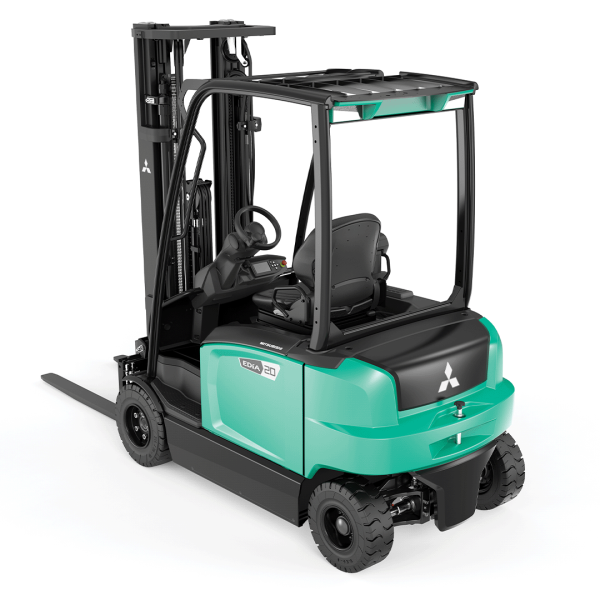

EDiA EM Alternate models 2-min

FB18CN2

1.8 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre
EDiA EM Alternate models-min

FB16N2

1.6 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre
EDiA EM Alternate models 2-min

FB18N2

1.8 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
4 Wheels
Load Centre
EDiA EM Alternate models-min

FB20N2

2.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
500 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

It can lift up to 2.0 tonnes, making it a strong choice for a wide range of warehouse and logistics tasks.
A 4-wheel setup offers extra stability, especially on uneven ground or when carrying heavier loads, while still delivering smooth and precise handling.
Yes. It’s built with a sealed chassis and water-resistant components, making it ideal for both indoor use and light outdoor work.
It features ergonomic controls, a spacious cabin, and automatic performance adjustments – helping reduce fatigue and keep productivity high across long shifts.
