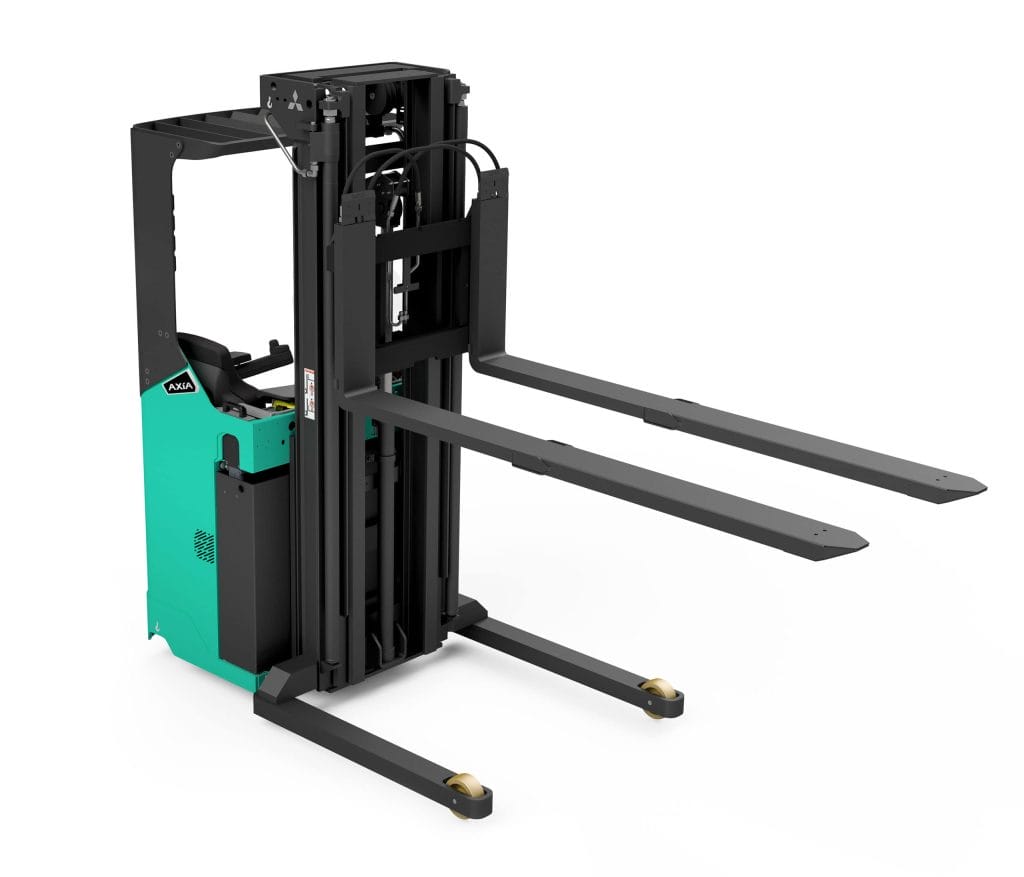

Axia XL (Sit-on)

New, Stackers
The sit-on AXiA XL brings the most comfort and performance in the range. It’s designed for non-stop stacking with top speed, long battery life, and a focus on reducing strain. The cabin keeps the operator in control and protected at all times.

Comfort Steering with Floating Armrest

An adjustable mini steering wheel and floating armrest reduce fatigue during long shifts. This helps keep the operator more focused and lowers the risk of strain-related injuries.

Smart Stability Control

In addition to the stable chassis, the system automatically reduces acceleration during sharp turns and limits drive speed when forks are raised above 1.2 metres, keeping loads safer at height.

External Charging Port

An optional external battery plug lets you charge lead-acid batteries without disconnecting internal cables. The truck is automatically disabled during charging for safety.

Extendable Forks for Versatile Handling

Telescopic forks enable double-deep stacking, handling of long loads, and moving two pallets at once. They also extend to reach across lorry beds and conveyors, streamlining loading and unloading.

Quick-Charge Battery Option

The optional lithium-ion battery offers fast charging and low maintenance, no need for extra batteries or changeovers.

Smooth 360° Steering

This optional feature allows seamless turning in one continuous motion, no stop-start 3-point turns. It improves handling, protects the load, and saves valuable time.

KEY FEATURES

Comfort Steering with Floating Armrest

An adjustable mini steering wheel and floating armrest reduce fatigue during long shifts. This helps keep the operator more focused and lowers the risk of strain-related injuries.

Smart Stability Control

In addition to the stable chassis, the system automatically reduces acceleration during sharp turns and limits drive speed when forks are raised above 1.2 metres, keeping loads safer at height.

Extendable Forks for Versatile Handling

Telescopic forks enable double-deep stacking, handling of long loads, and moving two pallets at once. They also extend to reach across lorry beds and conveyors, streamlining loading and unloading.

Quick-Charge Battery Option

The optional lithium-ion battery offers fast charging and low maintenance, no need for extra batteries or changeovers.

Smooth 360° Steering

This optional feature allows seamless turning in one continuous motion, no stop-start 3-point turns. It improves handling, protects the load, and saves valuable time.

KEY FEATURES

This truck is perfect for...

Perfect for major warehouse operations moving lots of stock over long distances. If your team works hard and moves fast, this truck helps them stay sharp.

Detailed specification

Model
SBS12N2TF
Power Source
Electric
Operator Type
Sit-on
Load Capacity (kg)
1200 kg
Load Centre Distance (mm)
600 mm
Load Distance - Axle to Forkface (mm)
714 mm
Wheelbase (mm)
1660 mm
Model
SBS12N2TF
Unladen Weight (kg)
2178 kg
Axle Loading w/ Maximum Load - front/rear (kg)
1545 / 1833 kg
Axle Loading no Load - front/rear (kg)
1525 / 653 kg
Model
SBS12N2TF
Tyres
Vul (Vulkollan)
Front Tyre Dimensions
250 × 105 mm
Rear Tyre Dimensions
150 × 55 mm
No. of Wheels
2 / 1× + 2
Truck Width (centre of tyres, front) mm
706 mm
Truck Width (centre of tyres, rear) mm
850 / 1050 mm

Which truck is right for you?

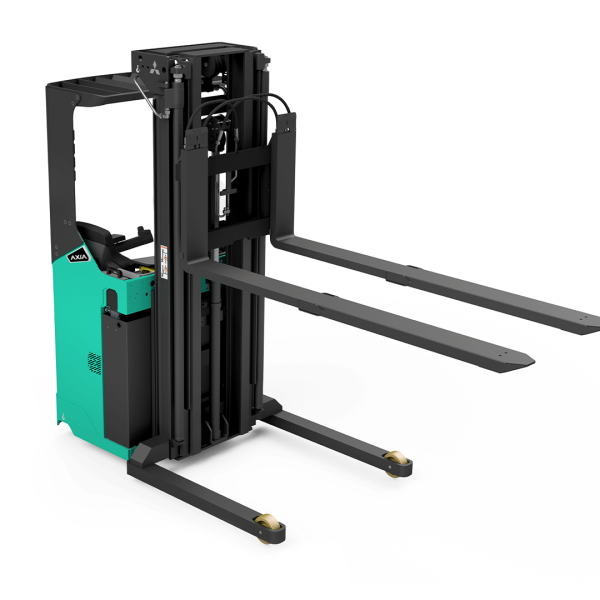

Axia xl sit onsection image-min

SBS12N2TF

1.2 tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

It improves comfort and safety during long shifts, especially when travelling longer distances or stacking at height.
Yes. The telescopic forks allow for double-deep stacking, two-pallet handling, long goods, and better reach across loading areas.
No, it’s an optional feature. It allows for faster, smoother turning and helps improve efficiency and stability during tight manoeuvres.
Yes. The optional lithium-ion battery supports quick charging with zero maintenance, helping keep your truck in use with less downtime.
