Axia ES

New, Stackers

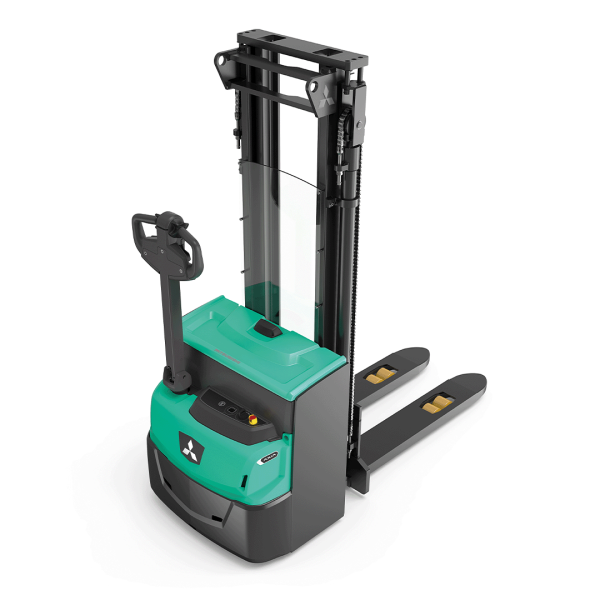

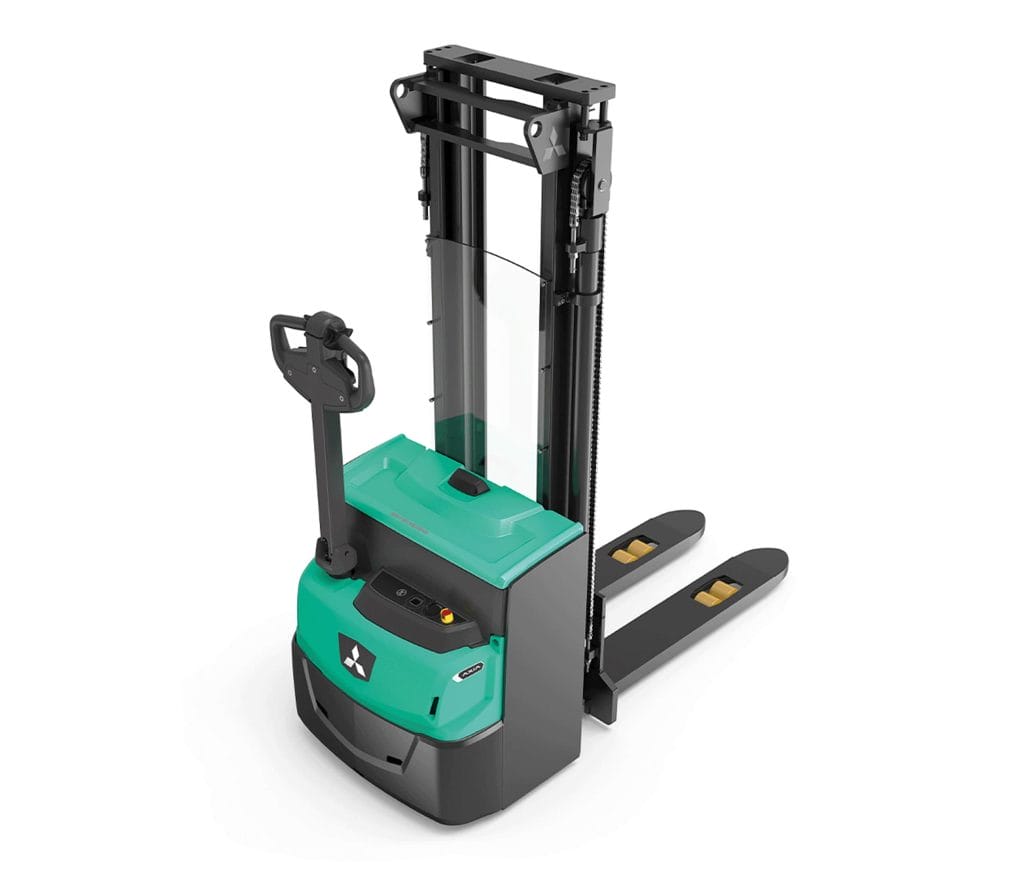

The AXiA ES pedestrian stackers are built for narrow spaces and simple day-to-day stacking. They’re compact, easy to steer, and come with a sealed chassis that protects against dust and moisture. The low-speed control in corners and ergonomic tiller help make operation smooth and safe. These are no-fuss machines made for getting the job done.

Sealed Frame for Tough Conditions

The fully enclosed chassis protects internal parts from dust and moisture, helping the truck perform reliably even in demanding environments.

Durable Cast-Iron Drive Assembly

A solid cast-iron design with oil-lubricated gears offers long-lasting strength and minimal maintenance needs.

Stable, Low-Profile Build

With a low centre of gravity, the truck delivers strong lifting power and added balance when handling loads.

Slimline Body for Tight Spaces

Its narrow frame allows easy movement in tight aisles and helps free up valuable storage space.

Reinforced Battery Cover

The battery lid is built with thick steel and sturdy hinges to handle daily wear and tear without issue.

Upright Tiller Drive Mode

Creep speed mode lets you operate the truck with the tiller arm raised, ideal for working in confined areas.

Smart Control System

An upgraded controller cuts wiring by 30%, boosting uptime and reliability. Comes with ECO and PRO modes for better control and efficiency.

Wide Range of Lift Heights

Choose from lift heights starting at 1500 mm, up to an industry-leading 5400 mm, giving you flexibility across jobs.

Strong, Clear-View Mast

The wide-view mast is built for strength and visibility, helping operators lift with confidence.

KEY FEATURES

Sealed Frame for Tough Conditions

The fully enclosed chassis protects internal parts from dust and moisture, helping the truck perform reliably even in demanding environments.

Stable, Low-Profile Build

With a low centre of gravity, the truck delivers strong lifting power and added balance when handling loads.

Reinforced Battery Cover

The battery lid is built with thick steel and sturdy hinges to handle daily wear and tear without issue.

Wide Range of Lift Heights

Choose from lift heights starting at 1500 mm, up to an industry-leading 5400 mm, giving you flexibility across jobs.

Strong, Clear-View Mast

The wide-view mast is built for strength and visibility, helping operators lift with confidence.

KEY FEATURES

This truck is perfect for...

Great for retail stores, stockrooms, and small warehouses that need reliable stacking in tight areas. If space is limited and jobs are light to moderate, this truck fits the bill.

Detailed specification

Model
SBP10N3
SBP10N3R
SBP12N3
SBP12N3I
SBP12N3R
SBP12N3IR
SBP14N3
SBP14N3I
SBP14N3R
SBP14N3IR
SBP16N3
SBP16N3I
SBP16N3R
SBP16N3IR
SBP16N3S
SBP16N3SR
Power Source
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Operator Type
Pedestrian
Pedestrian / Stand-on
Pedestrian
Pedestrian
Pedestrian / Stand-on
Pedestrian / Stand-on
Pedestrian
Pedestrian
Pedestrian / Stand-on
Pedestrian / Stand-on
Pedestrian
Pedestrian
Pedestrian / Stand-on
Pedestrian / Stand-on
Pedestrian / Stand-on
Pedestrian / Stand-on
Load Capacity (kg)
1000 kg
1000 kg
1200 kg
1200 kg
1200 kg
1200 kg
1400 kg
1400 kg
1400 kg
1400 kg
1600 kg
1600 kg
1600 kg
1600 kg
1600 kg
1600 kg
Load Centre Distance (mm)
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
Load Distance - Axle to Forkface (mm)
700 mm
700 mm
750 mm
925 mm
750 mm
925 mm
750 mm
925 mm
750 mm
925 mm
750 mm
925 mm
750 mm
925 mm
750 mm
750 mm
Wheelbase (mm)
1215 mm
1215 mm
1330 mm
1610 mm
1330 mm
1610 mm
1330 mm
1610 mm
1330 mm
1610 mm
1330 mm
1610 mm
1330 mm
1610 mm
1395 mm
1395 mm
Model
SBP10N3
SBP10N3R
SBP12N3
SBP12N3I
SBP12N3R
SBP12N3IR
SBP14N3
SBP14N3I
SBP14N3R
SBP14N3IR
SBP16N3
SBP16N3I
SBP16N3R
SBP16N3IR
SBP16N3S
SBP16N3SR
Unladen Weight (kg)
730 kg
860 kg
1020 kg
1095 kg
1100 kg
1175 kg
1020 kg
1095 kg
1100 kg
1175 kg
1095 kg
1171 kg
1176 kg
1251 kg
1364 kg
1516 kg
Axle Loading w/ Maximum Load - front/rear (kg)
612 / 1128 kg
715 / 1155 kg
810 / 1410 kg
1060 / 1230 kg
840 / 1400 kg
1030 / 1350 kg
845 / 1580 kg
1105 / 1390 kg
860 / 1580 kg
1115 / 1460 kg
930 / 1171 kg
1205 / 1561 kg
990 / 1795 kg
1263 / 1588 kg
1106 / 1885 kg
1246 / 1880 kg
Axle Loading no Load - front/rear (kg)
534 / 196 kg
640 / 220 kg
730 / 295 kg
780 / 315 kg
860 / 320 kg
840 / 335 kg
730 / 295 kg
780 / 312 kg
740 / 295 kg
840 / 335 kg
790 / 311 kg
840 / 328 kg
860 / 320 kg
903 / 348 kg
953 / 411 kg
1081 / 435 kg
Model
SBP10N3
SBP10N3R
SBP12N3
SBP12N3I
SBP12N3R
SBP12N3IR
SBP14N3
SBP14N3I
SBP14N3R
SBP14N3IR
SBP16N3
SBP16N3I
SBP16N3R
SBP16N3IR
SBP16N3S
SBP16N3SR
Tyres
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Front Tyre Dimensions
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
230 × 70 mm
Rear Tyre Dimensions
85 × 90 mm
85 × 90 mm
85 × 90 mm
85 × 90 mm
85 × 90 mm
85 × 90 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
85 × 75 mm
No. of Wheels
2 / 1x + 1
2 / 1x + 1
2 / 1x + 1
2 / 1x + 1
2 / 1x + 1
2 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
4 / 1x + 1
Truck Width (centre of tyres, front) mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
515 mm
Truck Width (centre of tyres, rear) mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
385 mm
1025-1425 mm
1025-1425

Which truck is right for you?

AXiA ES SBP10-16N3 section-min

SBP10N3

1.0 Tonne
Tonnes
4 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP10N3R

1.0 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP12N3

1.2 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP12N3I

1.2 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP12N3R

1.2 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP12N3IR

1.2 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP14N3

1.4 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP14N3I

1.4 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP14N3R

1.4 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP14N3IR

1.4 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP16N3

1.6 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP16N3I

1.6 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP16N3R

1.6 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP16N3IR

1.6 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP16N3S

1.6 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA ES SBP10-16N3 section-min

SBP16N3SR

1.6 Tonne
Tonnes
5 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

You can choose from several lift heights, all the way up to 5400 mm, which is among the highest in its class.
Yes. Its compact chassis and upright tiller drive mode make it ideal for working in tight spaces.
It protects key components from dust and water, which means more uptime and fewer maintenance issues, even in tougher environments.
Yes. You can switch between ECO and PRO modes depending on your needs, prioritising either energy savings or performance.
