When working outside of guided aisles, the truck automatically limits drive speed if the forks are raised above a set height, helping to maintain safe handling.

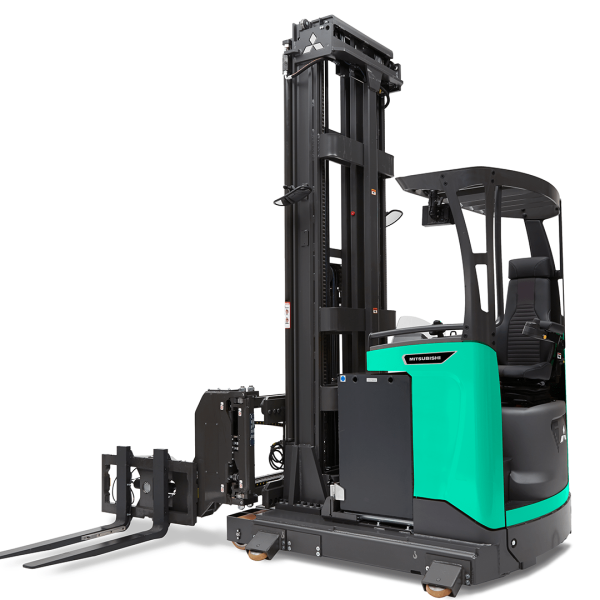

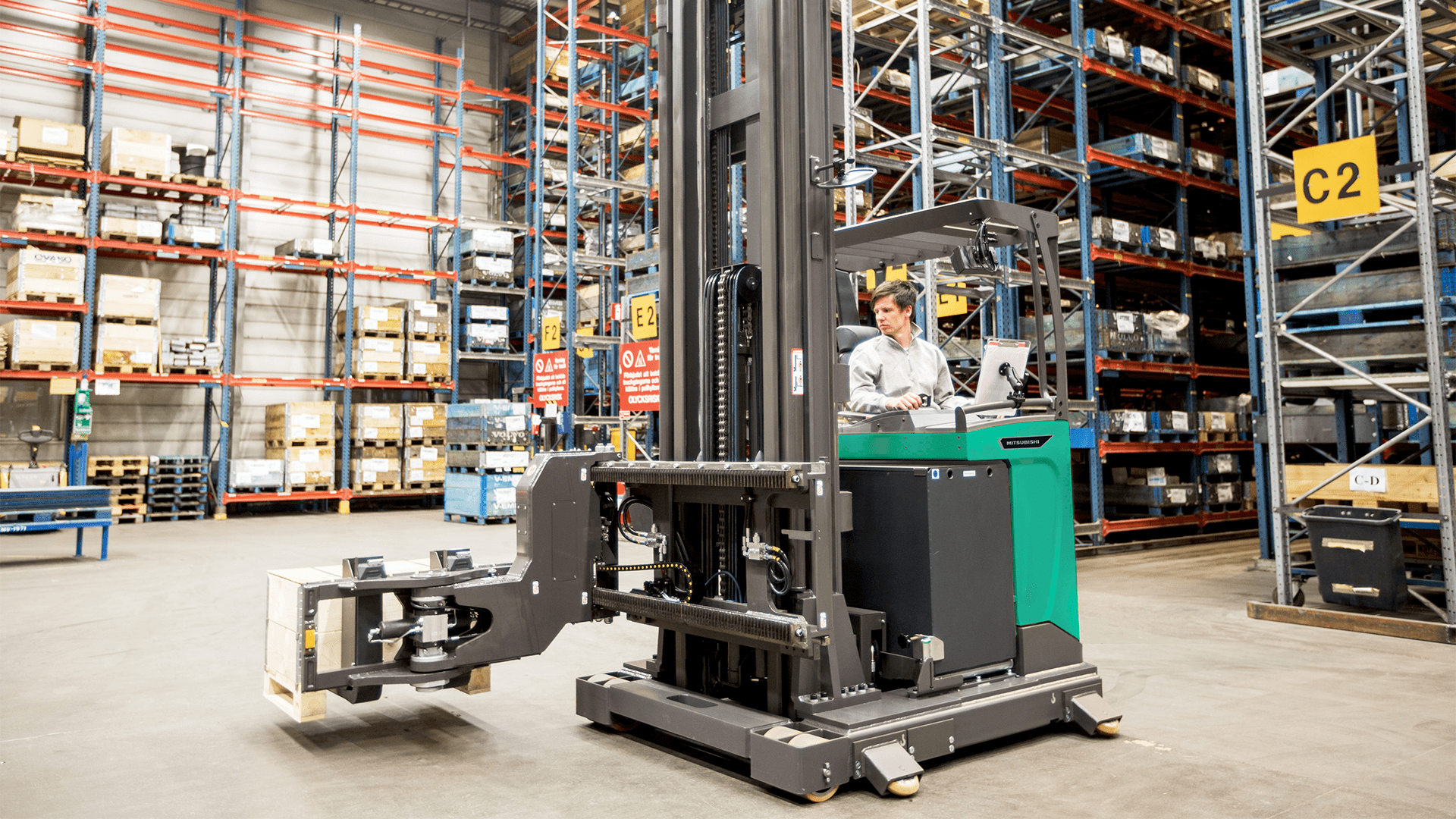

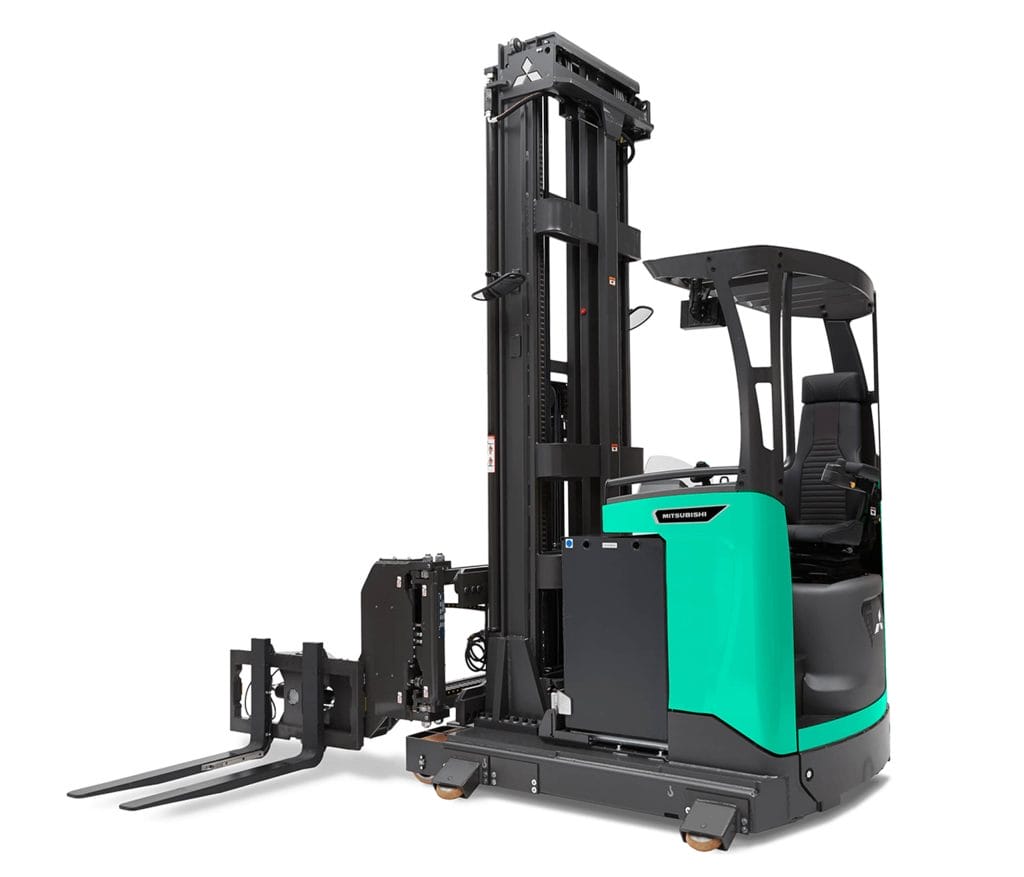

The THD13-15N3 performs as an efficient VNA truck inside narrow aisles, but also delivers reach truck-style agility when outside them. This reduces the need for extra equipment and operators, helping you simplify your fleet.
The truck provides a wide, unobstructed view around the operator. Clear visibility through the mast gives an excellent line of sight to the forks and load, helping improve accuracy and confidence.
One highly ergonomic joystick gives fingertip control of up to seven key functions, including lift, lower, rotate, and fork traverse. This helps make operation smoother and more intuitive.
When lift input slows, the system senses the operator’s intention and stops forks automatically at the right height, improving both safety and efficiency when handling loads.
When working outside guided aisles, the truck automatically limits drive speed if the forks are raised above a set height, helping to maintain safe handling.
The THD13-15N3 performs as an efficient VNA truck inside narrow aisles, but also delivers reach truck-style agility when outside them. This reduces the need for extra equipment and operators, helping you simplify your fleet.
The truck provides a wide, unobstructed view around the operator. Clear visibility through the mast gives an excellent line of sight to the forks and load, helping improve accuracy and confidence.
One highly ergonomic joystick gives fingertip control of up to seven key functions, including lift, lower, rotate, and fork traverse. This helps make operation smoother and more intuitive.
When lift input slows, the system senses the operator’s intention and stops forks automatically at the right height, improving both safety and efficiency when handling loads.
Model |
---|
THD13N3 |
THD15N3 |
Power Source |
---|
Electric |
Electric |
Operator Type |
---|
Stand-on |
Stand-on |
Load Capacity (kg) |
---|
1250 kg |
1500 kg |
Load Distance - Axle to Forkface (mm) |
---|
400 - 600 mm |
400 - 600 mm |
Wheelbase (mm) |
---|
1534 mm |
1534 mm |
Model |
---|
THD13N3 |
THD15N3 |
Unladen Weight (kg) |
---|
6674 kg |
6674 kg |
Axle Loading no Load - front/rear (kg) |
---|
2804 / 3870 kg |
2804 / 3870 kg |
Model |
---|
THD13N3 |
THD15N3 |
Tyres |
---|
Vul (Vulkollan) |
Vul (Vulkollan) |
Front Tyre Dimensions |
---|
355 × 155 mm |
355 × 155 mm |
Rear Tyre Dimensions |
---|
200 × 110 mm |
200 × 110 mm |
No. of Wheels |
---|
4 / 1x |
4 / 1x |
Truck Width (centre of tyres, rear) mm |
---|
1312 mm |
1312 mm |
