GRENDiA EX (LPG)

Counterbalance Forklifts, LPG, New

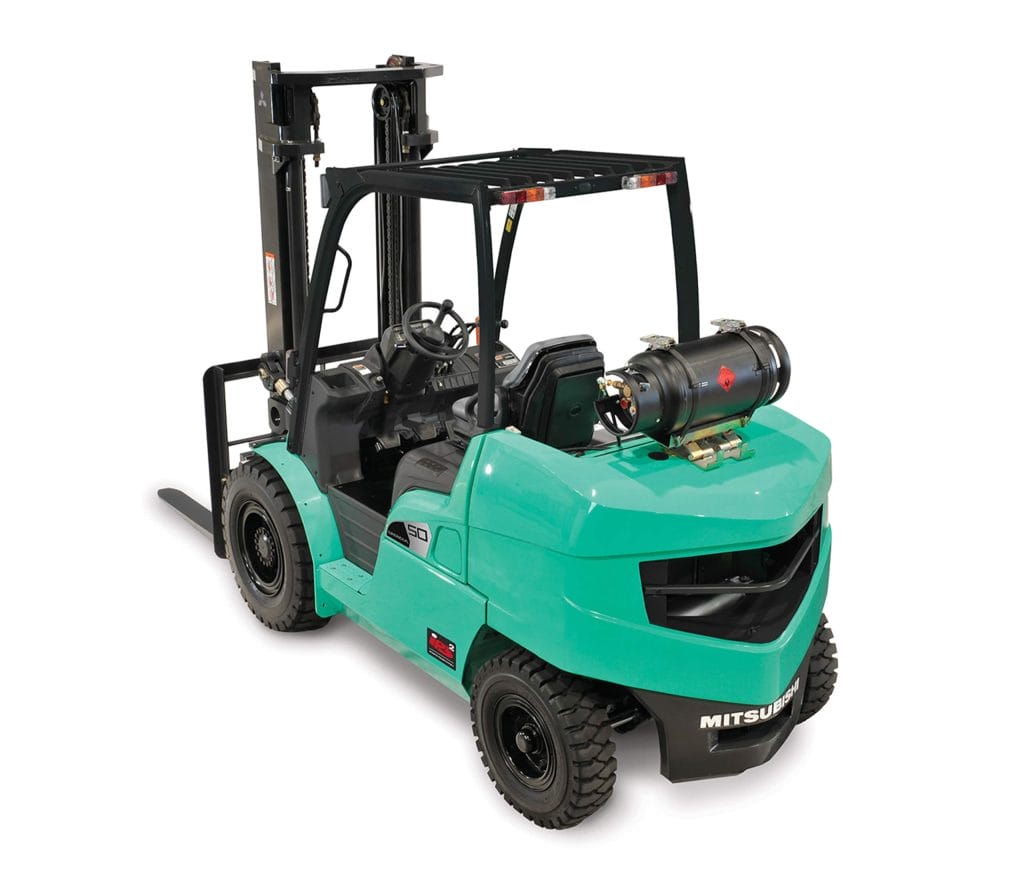

The Mitsubishi GRENDiA EX FG55N3 is a 5.5-tonne LPG counterbalance forklift built for demanding applications. Its Euro Stage V compliant engine delivers strong torque at low RPM, resulting in reduced fuel consumption and noise. The sealed chassis with a full belly guard protects the engine compartment from debris and minimizes dust-related issues. The Integrated Presence System (IPS2) enhances safety by disabling hydraulic and drive functions when the operator is not present for over two seconds, and includes PIN code access to prevent unauthorized use. Additional features like automatic LED lights and a high-visibility mast contribute to safer and more efficient operations.​

Integrated Presence System (IPS2)

Improves safety by cutting off hydraulic and drive functions if the operator leaves the seat for more than 2 seconds. Standard PIN access stops unauthorised use.

Sealed chassis with full belly guard and inner wheel covers

Fully sealed underside protects the engine from damage by debris like shrink-wrap. It also cuts noise and helps prevent dust-related safety issues.

Automotive-style pedals

Pedals are set at the ideal angle for easy use and better control - without straining the operator’s legs.

High productivity design

The low noise and vibration from the powertrain help reduce fatigue, keeping operators comfortable and focused.

Electronic speed control

The advanced electronic control system includes: Two adjustable travel speeds Low gear lock for safer use at height or on uneven ground Soft power mode to cut wheelspin, save tyres, and lower fuel use

Engine protection system

To protect the engine, the system responds in two steps if it overheats: first it slows the machine down, then it shuts it off to prevent damage.

2-speed powershift transmission

The fully floating powertrain is built to last. It gives strong, responsive performance with smooth, efficient control.

Automatic LED lights

For added safety, LED lights come as standard. They’re brighter than halogen, turn on automatically, and never need replacing if still working - all with no extra power use.

PIN code access as standard

Improves safety of work area as use of the machine is restricted to authorised operators only.

3-way catalytic converter (LPG)

Fitted to all LPG models as part of Mitsubishi’s safety-first approach. Delivers low fuel use, fewer emissions, and strong performance.

KEY FEATURES

Sealed chassis with full belly guard and inner wheel covers

Fully sealed underside protects the engine from damage by debris like shrink-wrap. It also cuts noise and helps prevent dust-related safety issues.

Engine protection system

To protect the engine, the system responds in two steps if it overheats: first it slows the machine down, then it shuts it off to prevent damage.

Automatic LED lights

For added safety, LED lights come as standard. They’re brighter than halogen, turn on automatically, and never need replacing if still working, all with no extra power use.

PIN code access as standard

Improves safety of work area as use of the machine is restricted to authorised operators only.

3-way catalytic converter (LPG)

Fitted to all LPG models as part of Mitsubishi’s safety-first approach. Delivers low fuel use, fewer emissions, and strong performance.

KEY FEATURES

This truck is perfect for...

The GRENDiA EX FG55N3 is well-suited for businesses that require a reliable forklift for heavy lifting tasks in challenging environments. Its robust design and advanced safety features make it ideal for industries such as manufacturing, logistics, and warehousing, where high performance and operator safety are essential. Companies aiming to reduce fuel costs and maintenance downtime will benefit from its fuel-efficient engine and low-maintenance design.​

Detailed specification

Model
FG40N3
FG45N3
FG50CN3
FG50N3
FG55N3
Power Source
LPG
LPG
LPG
LPG
LPG
Operator Type
Seated
Seated
Seated
Seated
Seated
Load Capacity (kg)
4000 kg
4500 kg
5000 kg
5000 kg
5500 kg
Load Centre Distance (mm)
500 mm
500 mm
500 mm
600 mm
600 mm
Load Distance - Axle to Forkface (mm)
577 mm
577 mm
582 mm
602 mm
602 mm
Wheelbase (mm)
1850 mm
2000 mm
2000 mm
2150 mm
2150 mm
Model
FG40N3
FG45N3
FG50CN3
FG50N3
FG55N3
Unladen Weight (kg)
6270 kg
5860 kg
6780 kg
7240 kg
7570 kg
Axle Loading w/ Maximum Load - front/rear (kg)
8940 kg / 920 kg
9680 kg / 1090 kg
10,570 / 1210 kg
10,990 kg / 1250 kg
11,710 kg / 1360 kg
Axle Loading no Load - front/rear (kg)
2610 kg / 3250 kg
2750 kg / 3520 kg
2870 kg / 3920 kg
3190 kg / 4050 kg
3130 kg / 4440 kg
Model
FG40N3
FG45N3
FG50CN3
FG50N3
FG55N3
Tyres
L (Pneumatic)
L (Pneumatic)
L (Pneumatic)
L (Pneumatic)
SE (Solid Pneumatic)
Front Tyre Dimensions
8.25 - 15 - 14
8.25 - 15 - 14
300 - 15 - 18
300 - 15 - 18
300 - 15 / 8.00
Rear Tyre Dimensions
7.00 - 12 - 14
7.00 - 12 - 14
7.00 - 12 - 14
7.00 - 12 - 14
7.00 - 12 / 5.00
No. of Wheels
2 x / 2
2 x / 2
2 x / 2
2 x / 2
2 x / 2
Truck Width (centre of tyres, front) mm
1175 mm
1175 mm
1175 mm
1175 mm
1175 mm
Truck Width (centre of tyres, rear) mm
1180 mm
1180 mm
1180 mm
1180 mm
1180 mm

Which truck is right for you?

GRENDiA ES (LPG) GESGN4-34MRANGE-FULL-01-S-min

FG40N3

4.0 Tonnes
Tonnes
4 Wheels
Wheels
LPG
Power Source
500 mm
Load Centre
GRENDiA ES (LPG) GESGN4-34MRANGE-FULL-01-S-min

FG45N3

4.5 Tonne
Tonnes
4 Wheels
Wheels
LPG
Power Source
500 mm
Load Centre
GRENDiA ES (LPG) GESGN4-34MRANGE-FULL-01-S-min

FG50CN3

5.0 Tonne
Tonnes
4 Wheels
Wheels
LPG
Power Source
500 mm
Load Centre
GRENDiA ES (LPG) GESGN4-34MRANGE-FULL-01-S-min

FG50N3

5.0 Tonne
Tonnes
4 Wheels
Wheels
LPG
Power Source
600 mm
Load Centre
GRENDiA ES (LPG) GESGN4-34MRANGE-FULL-01-S-min

FG55N3

5.5 Tonne
Tonnes
4 Wheels
Wheels
LPG
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

This model can lift up to 5.5 tonnes, making it ideal for demanding industrial or outdoor applications.
Yes. With a powerful diesel engine, rugged build, and sealed components, the FG55N3 is built to perform in harsh, outdoor environments.
It includes LED work lights, an engine protection system, and an operator presence system that disables movement if the driver leaves the seat.
It uses smart electronic engine control, a low-maintenance design, and offers excellent fuel economy, helping lower long-term operating costs.
