FLEXI 17

Electric, Forklifts, Narrow Aisle, New
Product Sheet
Range brochure
The Flexi 17 is an articulated forklift designed for narrow aisle warehouse work. It helps sites create up to 30% more warehouse capacity, with a 1700kg lift capacity, a 1000mm wide chassis and lift heights up to 8.5 metres. It can work in 2.0 metre EURO pallet aisles or 1.8 metre ISO pallet aisles, giving operators strong pallet handling performance in tight warehouse layouts.

Fixed “Clear Vision” Mast

The triplex free lift mast gives operators a clear forward view, helping them pick up and place pallets with more confidence.

Front Wheel Drive

The front wheel drive system gives safe traction when loaded or unloaded, helping the truck move smoothly across warehouse floors.

Forward-Facing Seat

The adjustable full-suspension seat supports the operator during long shifts, helping reduce fatigue and improve comfort.

Integrated Sideshift

The integrated sideshifting fork carriage helps operators position pallets more accurately for safer, easier stacking.

Easy Battery Access

The battery is easy to reach for checks, topping and changing, helping keep daily maintenance simple.

HiVIS Overhead Guard

The HiVIS Twin Post overhead guard gives the operator strong protection while keeping the forward view clear when stacking.

Unique Flexi 220° Over Rotation

The 220° over-rotation gives more stacking clearance in each aisle, helping operators turn faster and place loads with more control.

KEY FEATURES

1000mm Wide Chassis

The compact 1000mm chassis helps the Flexi 17 work in narrow aisles while giving operators good clearance when turning.

1700kg Lift Capacity

With a 1700kg lift capacity, the Flexi 17 is built for everyday pallet handling in medium and high bay warehouse operations.

Lift Heights to 8.5 Metres

The Flexi 17 can lift up to 8.5 metres, making it a strong fit for sites that need better use of vertical storage space.

Triplex or Quad Lift Mast

Mast options include triplex full free lift or quad four-stage full free lift, helping the truck suit different warehouse layouts.

No Rail or Wire Guidance Needed

The Flexi 17 does not need steel rail or inductive wire guidance in the aisle, giving operators more freedom across goods-in and storage areas.

KEY FEATURES

This truck is perfect for...

The Flexi 17 is ideal for narrow aisle warehouses, medium and high bay storage areas, push-back racking, drive-in racking and block stacking operations that need strong pallet handling without steel rail or wire guidance.

Detailed specification

Download Full Spec
Request Callback
Model
Flexi 17 N 1000
Flexi 17 N 1100
Flexi 17 N+ 1000
Flexi 17 N+ 1100
Power Source
Electric
Electric
Electric
Electric
Operator Type
Seated
Seated
Seated
Seated
Load Capacity (kg)
1700 kg
1700 kg
1700 kg
1700 kg
Load Centre Distance (mm)
600mm
600mm
600mm
600mm
Model
Flexi 17 N 1000
Flexi 17 N 1100
Flexi 17 N+ 1000
Flexi 17 N+ 1100
Model
Flexi 17 N 1000
Flexi 17 N 1100
Flexi 17 N+ 1000
Flexi 17 N+ 1100
No. of Wheels
4
4
4
4
Download Full Spec
Request Callback

Which truck is right for you?

FLEXI 15 updated hotspot

Flexi 15

1500 kg
Tonnes
4
Wheels
AC Power
Power Source
600 mm
Load Centre

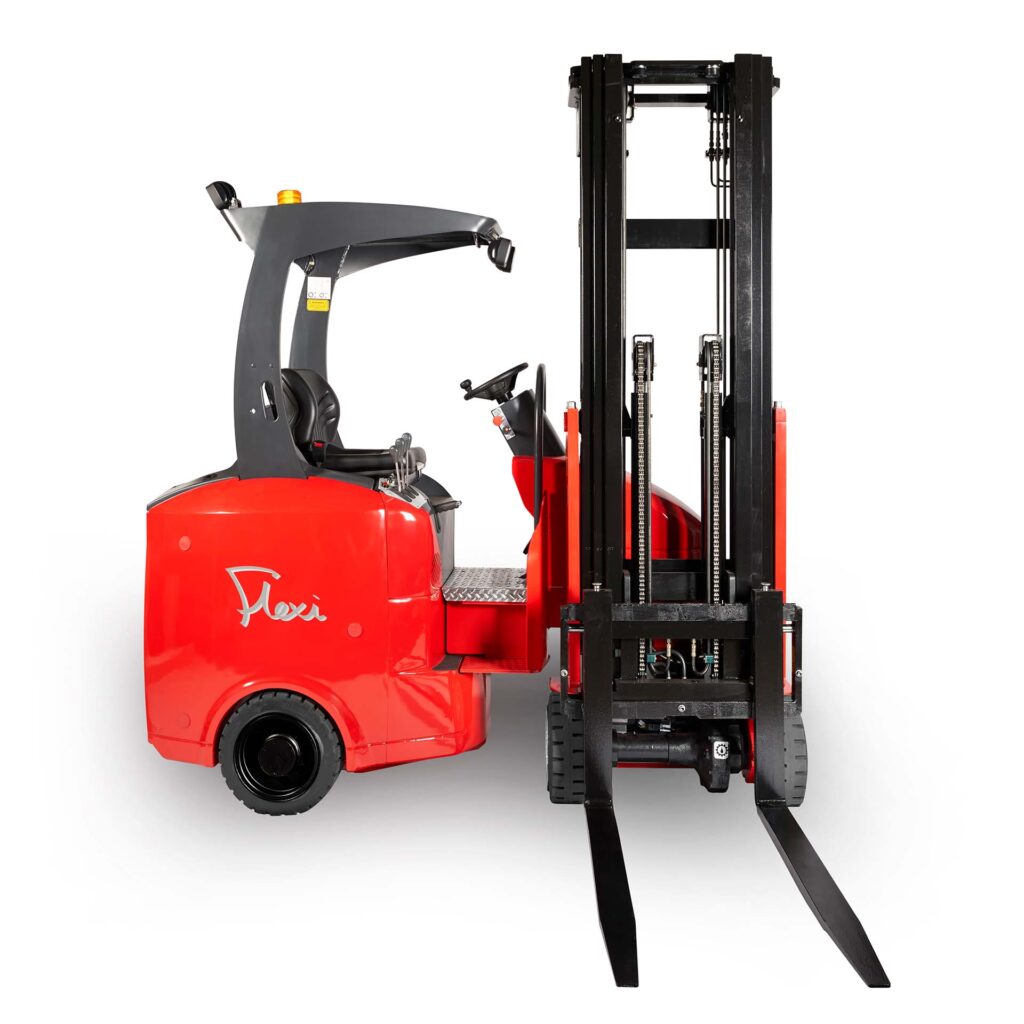

FLEXI 17 updated hotspot

FLEXI 17

1700 kg
Tonnes
4
Wheels
AC Power
Power Source
600 mm
Load Centre

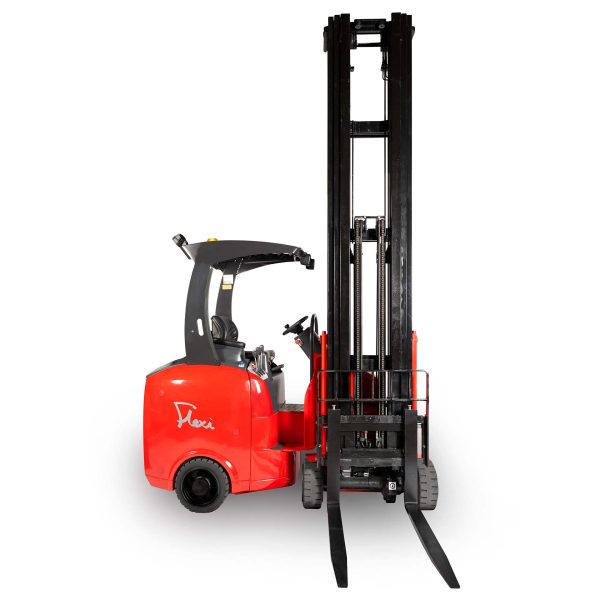

FLEXI 20 updated hotspot

FLEXI 20

2000 kg
Tonnes
4
Wheels
AC Power
Power Source
600 mm
Load Centre
FLEXI MAX 22-25 - hobspot

FLEXI MAX 22 / 25

1750 kg
Tonnes
4
Wheels
AC Power
Power Source
600 mm
Load Centre
FLEXI 25 updated hotspot

FLEXI 25

2500 kg
Tonnes
4
Wheels
AC Power
Power Source
600 mm
Load Centre
FLEX STORMAX 25 hotspot - updated

FLEXI StorMAX 25

1750 kg
Tonnes
4
Wheels
AC Power
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Read the full story

Whatever you need, we can deliver

Frequently Asked Questions

The Flexi 17 is used for narrow aisle pallet handling. It is built to help warehouses improve storage capacity and move pallets safely in tighter aisle layouts.
The Flexi 17 has a 1700kg lift capacity, making it suitable for a wide range of warehouse pallet handling tasks.
The Flexi 17 can work in 2.0 metre EURO pallet aisles or 1.8 metre ISO pallet aisles.
No. The Flexi 17 does not need steel rail or inductive wire guidance in the very narrow aisle, giving it more flexible movement across goods-in and storage areas.
