Elevia

Narrow Aisle, New
Product Sheet
Range brochure

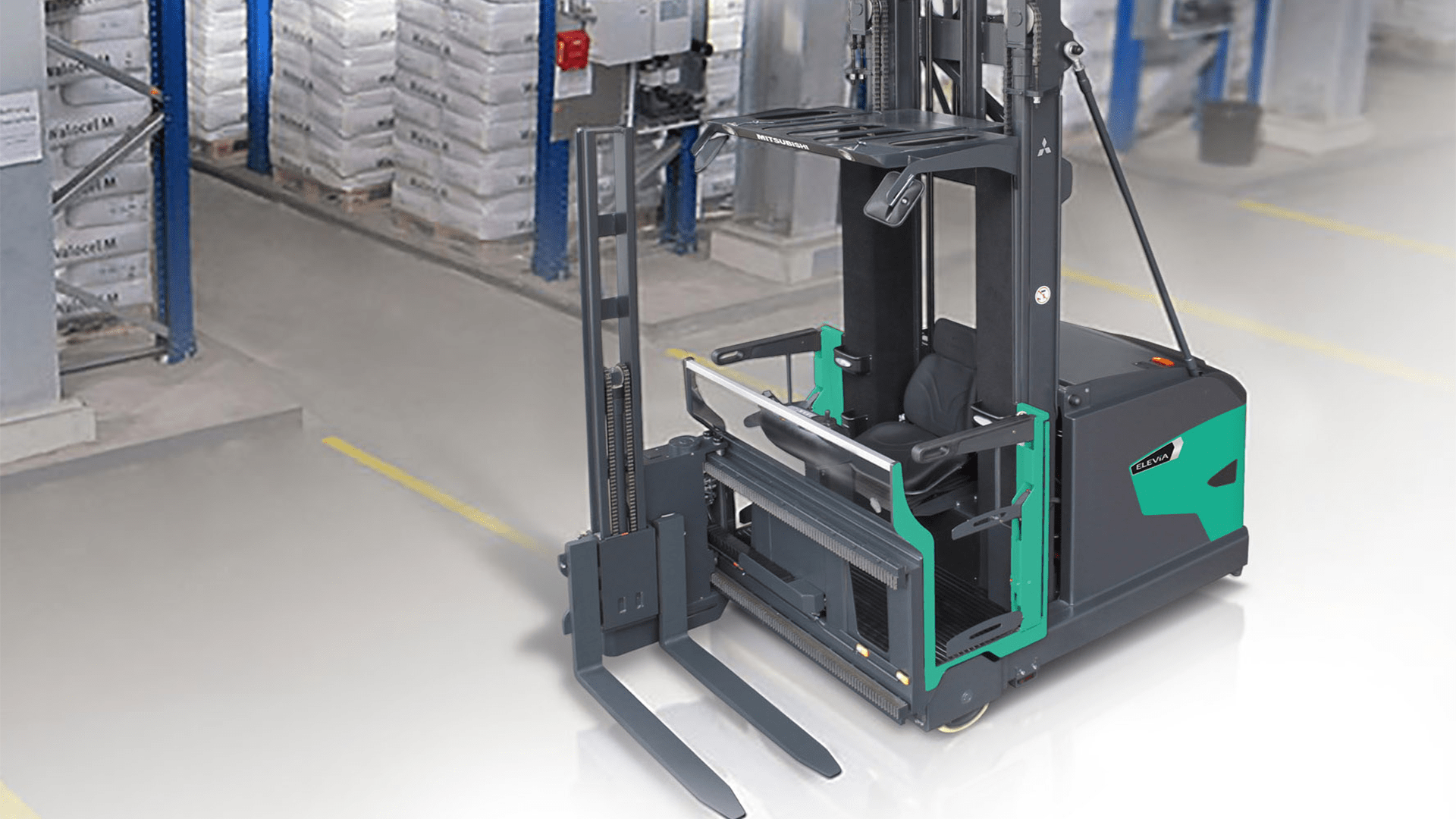

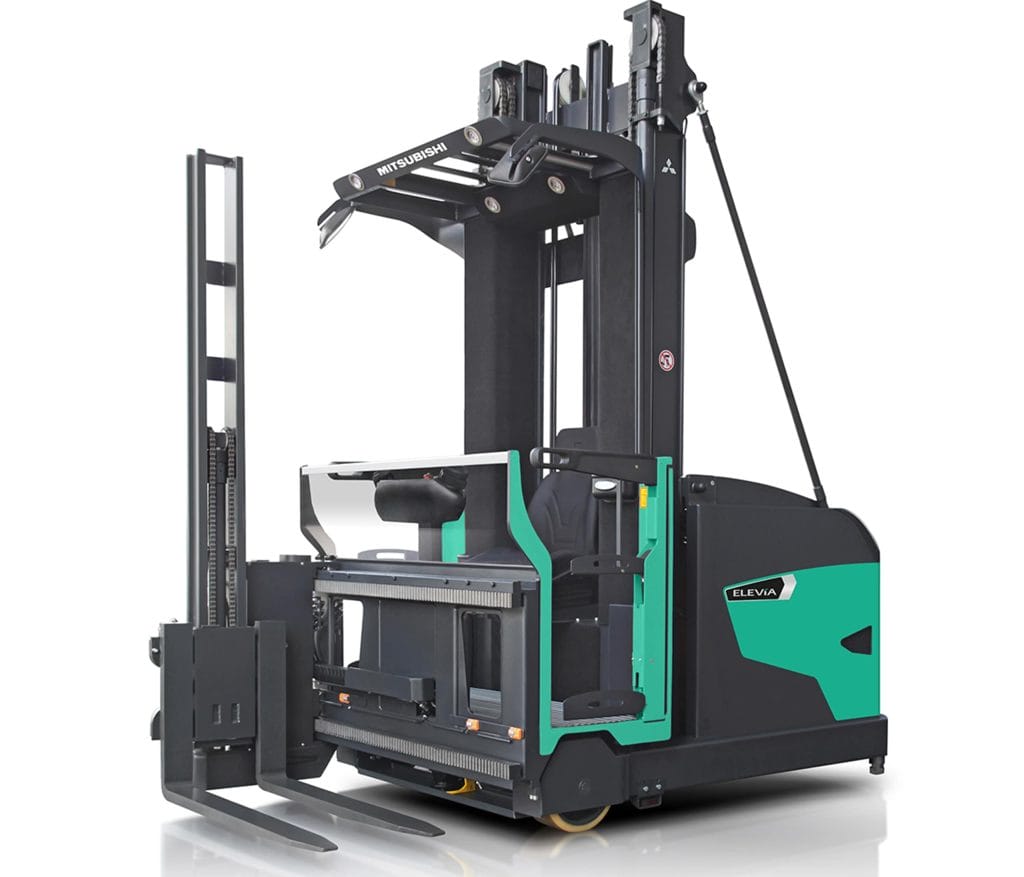

The Mitsubishi ELeVIA VNT20 is a man-up VNA truck built for high-rack operations in tight warehouse aisles. It offers lift heights up to 17 metres and uses advanced control systems to keep movements steady and smooth. The operator cabin rises with the forks, giving a clear view of the task. It also includes weight and height sensors to support safe, precise handling, no guesswork involved.

Purpose-Built for VNA Performance

ELEViA is designed specifically for very narrow aisle work, delivering excellent productivity and low maintenance needs.

Quick-Access Service Points

Maintenance points are easy to reach, helping speed up servicing and reduce downtime.

7 Model Options

Choose from 7 capacities, each tailored for specific tasks within VNA operations, giving you flexibility across your fleet.

Lift Heights to 19

Metres Reach high racking with ease, maximising the use of your available vertical storage space.

Adjustable Fork Spacing

Operators can quickly change fork width to suit different loads, helping boost efficiency.

Precision Drive & Control

Advanced drive systems provide high performance with precise handling, ensuring smooth and accurate operation.

Heavy-Duty Component Protection

A reinforced steel cover protects key parts like the motor and steering from impact damage, built to handle busy environments.

Tilting Side Gates (Optional)

Optional tilting gates reduce the distance to the shelf by up to 20 cm, helping operators work more comfortably and safely.

Customisable Control Layout

Choose from several control setups, twist grips, single/multi-function levers, or split-panel controls integrated into the armrests, to match driver preferences.

KEY FEATURES

Lift Heights to 19 Metres

Reach high racking with ease, maximising the use of your available vertical storage space.

Adjustable Fork Spacing

Operators can quickly change fork width to suit different loads, helping boost efficiency.

Precision Drive & Control

Advanced drive systems provide high performance with precise handling, ensuring smooth and accurate operation.

Heavy-Duty Component Protection

A reinforced steel cover protects key parts like the motor and steering from impact damage, built to handle busy environments.

Customisable Control Layout

Choose from several control setups, twist grips, single/multi-function levers, or split-panel controls integrated into the armrests, to match driver preferences.

KEY FEATURES

This truck is perfect for...

Best for warehouses that need fast, accurate picking at high levels. If your operation uses narrow aisles and stores stock vertically, this truck helps you get the most out of every metre of space.

Detailed specification

Download Full Spec
Request Callback
Model
VNT11
VNT12
VNT13
VNT14
VNT15
VNT15XL
VNT20
Power Source
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Operator Type
Standing / Seated
Standing / Seated
Standing / Seated
Standing / Seated
Standing / Seated
Standing / Seated
Standing / Seated
Load Capacity (kg)
1100 kg
1200 kg
1300 kg
1400 kg
1500 kg
1500 kg
2000 kg
Load Centre Distance (mm)
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
Load Distance - Axle to Forkface (mm)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Wheelbase (mm)
1780 mm
1845 mm
1910 mm
1880 mm
2140 mm
2140 mm
2140 mm
Model
VNT11
VNT12
VNT13
VNT14
VNT15
VNT15XL
VNT20
Unladen Weight (kg)
4900 - 5600 kg
4950 - 5800 kg
5050 - 5900 kg
5800 - 6900 kg
7100 - 8700 kg
8900 - 9400 kg
7400 - 8900 kg
Axle Loading w/ Maximum Load - front/rear (kg)
1600/4400; 1850/4850 kg
1650/4500; 1900/5100 kg
1700/4650; 2000/5200 kg
1800/5300; 2050/6150 kg
2300/6300; 2950/7250 kg
3000/7400; 3100/7800 kg
2100/7300; 2700/8200 kg
Axle Loading no Load - front/rear (kg)
2100/2800; 2400/3200 kg
2150/2800; 2450/3350 kg
2250/2800; 2550/3350 kg
2400/3400; 2700/4200 kg
2900/4200; 3550/5150 kg
3500/5400; 3700/5700 kg
3000/4400; 3400/5400 kg
Model
VNT11
VNT12
VNT13
VNT14
VNT15
VNT15XL
VNT20
Tyres
Polyurethane
Polyurethane
Polyurethane
Polyurethane
Polyurethane
Polyurethane
Polyurethane
Front Tyre Dimensions
343 / 140 mm
343 / 140 mm
343 / 140 mm
343 / 140 mm
381 / 152 mm
381 / 152 mm
381 / 152 mm
Rear Tyre Dimensions
343 / 140 mm
343 / 140 mm
343 / 140 mm
377 / 178 mm
377 / 178 mm
377 / 178 mm
377 / 178 mm
No. of Wheels
2 / 1 x
2 / 1 x
2 / 1 x
2 / 1 x
2 / 1 x
2 / 1 x
2 / 1 x
Truck Width (centre of tyres, front) mm
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Truck Width (centre of tyres, rear) mm
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Download Full Spec
Request Callback

Which truck is right for you?

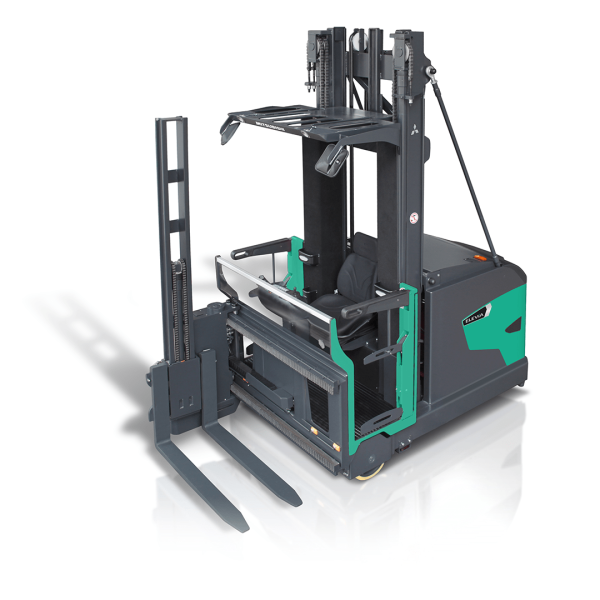

ELEVIA-34MRANGE-FULL-01-S-min

VNT11

1.1 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
ELEVIA-34MRANGE-FULL-01-S-min

VNT12

1.2 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
ELEVIA-34MRANGE-FULL-01-S-min

VNT13

1.3 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
ELEVIA-34MRANGE-FULL-01-S-min

VNT14

1.4 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
ELEVIA-34MRANGE-FULL-01-S-min

VNT15

1.5 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
ELEVIA-34MRANGE-FULL-01-S-min

VNT15XL

1.5 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
ELEVIA-34MRANGE-FULL-01-S-min

VNT20

2.0 Tonne
Tonnes
3 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Read the full story

Whatever you need, we can deliver

Frequently Asked Questions

ELEViA can lift up to 19 metres, ideal for high racking and optimising warehouse storage.
You can choose from 7 different models; each offering capacities and features to match specific warehouse needs.
Yes. ELEViA offers a choice of control styles, twist grips, lever controls, or integrated armrest controls, so operators can use what suits them best.
Optional tilting side gates help reduce strain by bringing the operator closer to the shelf. The truck’s smooth drive and adjustable controls also contribute to a more comfortable working experience.
