EDiA XL

Counterbalance Forklifts, Electric, New

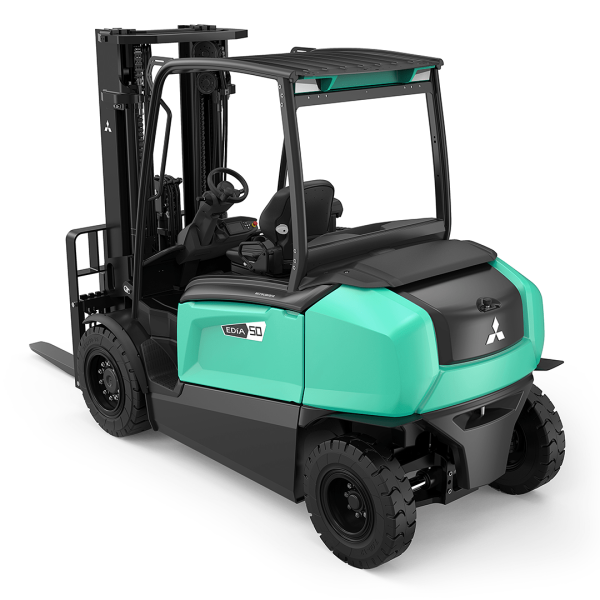

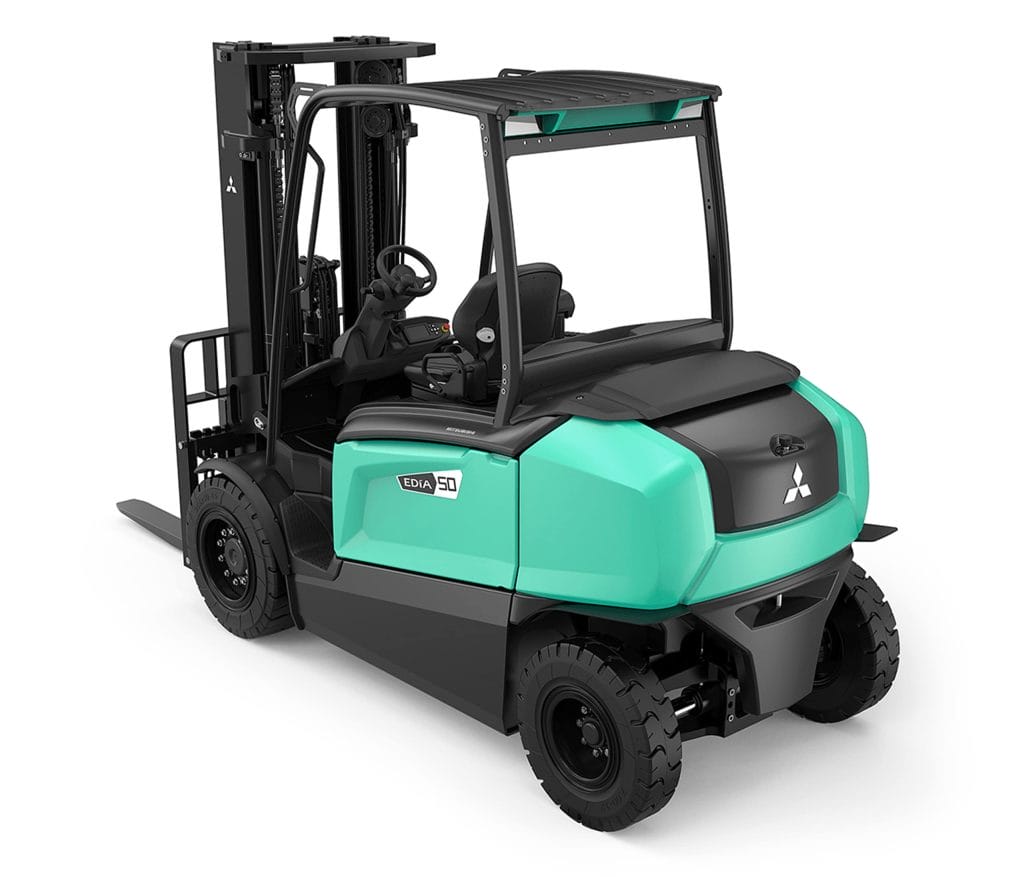

The Mitsubishi EDiA XL FB55N is a 5.5-tonne electric forklift designed for heavy-duty applications. It features a rubber-sealed cabin to minimize vibrations and noise, enhancing operator comfort. With AutoBoost for additional power, Adaptive Lift Control for stability, and dual joysticks for simultaneous lift and tilt functions, it offers precise and efficient handling.

Mini steering wheel

The mini steering wheel reduces the effort needed to steer, promoting a more relaxed driving position. It helps keep the operator comfortable and in control during long shifts. (Option)

AutoBoost

The truck automatically boosts acceleration and torque when it detects a need for extra power.

Adaptive Lift Control (ALC)

Operators can lower loads smoothly with fewer adjustments, keeping movements quick, precise, and consistent—no matter the load weight.

Dual joysticks

The ergonomic dual joysticks allow lift and tilt at the same time, with a solid grip that works well even when wearing gloves.

Red Dot design award winner

The Red Dot award is a global mark of design excellence—recognising standout looks, smart features, and strong functionality. The truck’s modern design, advanced tech, and top-level ergonomics impressed the expert panel.

Comfortable cabin

Noise inside the cabin stays at just 65 dBA—about the same as a normal conversation—creating a quiet, low-stress space where operators can stay focused.

Electric differential lock

When activated, the electric differential lock improves traction by turning both front wheels together. It can also be set to engage automatically at low speeds or when steering is limited.

Intelligent Cornering System

The truck slows earlier when turning, making cornering smoother and safer.

Sensitive Drive System+ (SDS+)

This driver-assist system reacts to each operator’s input, automatically adjusting performance to improve both safety and productivity.

Four Wheel Steering (4WS)

This improves grip and handling—especially in tight spaces—by allowing the truck to turn quickly and smoothly on the spot.

Passive Sway Control

The chassis absorbs mast sway, giving operators better stability and control when lifting to higher levels.

UKMHA Environmental Product of the Year 2022

Industry experts praised Mitsubishi Forklift Trucks for features like AutoBoost and Low Noise Lift, seeing it as a clean, energy-efficient electric option that can now take on more tasks traditionally handled by 4–5.5-tonne IC engine trucks.

KEY FEATURES

Adaptive Lift Control (ALC)

Operators can lower loads smoothly with fewer adjustments, keeping movements quick, precise, and consistent, no matter the load weight.

Dual joysticks

The ergonomic dual joysticks allow lift and tilt at the same time, with a solid grip that works well even when wearing gloves.

Comfortable cabin

Noise inside the cabin stays at just 65 dBA, about the same as a normal conversation, creating a quiet, low-stress space where operators can stay focused.

Four Wheel Steering (4WS)

This improves grip and handling, especially in tight spaces, by allowing the truck to turn quickly and smoothly on the spot.

Passive Sway Control

The chassis absorbs mast sway, giving operators better stability and control when lifting to higher levels.

KEY FEATURES

This truck is perfect for...

The EDiA XL FB55N is ideal for industries requiring the handling of heavy loads, such as construction and large-scale manufacturing. Its focus on operator comfort and control makes it suitable for long shifts and demanding tasks

Detailed specification

Model
FB40N
FB45N
FB50CN
FB50N
FB50NH
FB55NH
Power Source
Electric
Electric
Electric
Electric
Electric
Electric
Operator Type
Seated
Seated
Seated
Seated
Seated
Seated
Load Capacity (kg)
4000 kg
4500 kg
4990 kg
4990 kg
5000 kg
5500 kg
Load Centre Distance (mm)
500 mm
500 mm
500 mm
500 mm
600 mm
600 mm
Load Distance - Axle to Forkface (mm)
540 mm
540 mm
540 mm
540 mm
560 mm
560 mm
Wheelbase (mm)
1946 mm
1946 mm
1946 mm
2090 mm
2090 mm
2090 mm
Model
FB40N
FB45N
FB50CN
FB50N
FB50NH
FB55NH
Unladen Weight (kg)
7290 kg
7648 kg
7991 kg
8347 kg
8472 kg
8711 kg
Axle Loading w/ Maximum Load - front/rear (kg)
10,040 / 1250 kg
10,795 / 1,353 kg
11,574 / 1,417 kg
11,563 / 1784
12,009 / 1463
12,799 / 1412 kg
Axle Loading no Load - front/rear (kg)
3902 / 3388 kg
3890 / 3758 kg
3902 / 4089 kg
4075 / 4272 kg
4234 / 4238 kg
4246 / 4465 kg
Model
FB40N
FB45N
FB50CN
FB50N
FB50NH
FB55NH
Tyres
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
SE (Solid Pneumatic)
Front Tyre Dimensions
250 x 15 (710)
250 x 15 (710)
355 / 50 - 15 (710)
355 / 50-15 (710)
355 / 50-15 (710)
355 / 50-15 (710
Rear Tyre Dimensions
7.00 x 12 (650)
7.00 x 12 (650)
7.00 x 12 (650)
7.00 x 12 (650)
7.00 x 12 (650)
7.00 x 12 (650)
No. of Wheels
2 x / 2
2 x / 2
2 x / 2
2 x / 2
2 x / 2
2 x / 2
Truck Width (centre of tyres, front) mm
1143 mm
1143 mm
1154 mm
1154 mm
1154 mm
1154 mm
Truck Width (centre of tyres, rear) mm
1169 mm
1169 mm
1169 mm
1169 mm
1169 mm
1169 mm

Which truck is right for you?

EDiA XL EDIAXL-34MRANGE-FULL-01-S-min

FB40N

4.0 Tonne
Tonnes
4 Wheels
Wheels
AC Power
Power Source
500 mm
Load Centre
EDiA XL EDIAXL-34MRANGE-FULL-01-S-min

FB45N

4.5 Tonne
Tonnes
4 Wheels
Wheels
AC Power
Power Source
500 mm
Load Centre
EDiA XL EDIAXL-34MRANGE-FULL-01-S-min

FB50CN

4.99 Tonne
Tonnes
4 Wheels
Wheels
AC Power
Power Source
500 mm
Load Centre
EDiA XL EDIAXL-34MRANGE-FULL-01-S-min

FB50N

4.99 Tonne
Tonnes
4 Wheels
Wheels
AC Power
Power Source
500 mm
Load Centre
EDiA XL EDIAXL-34MRANGE-FULL-01-S-min

FB50NH

4.99 Tonne
Tonnes
4 Wheels
Wheels
AC Power
Power Source
500 mm
Load Centre
EDiA XL EDIAXL-34MRANGE-FULL-01-S-min

FB55NH

5.5 Tonne
Tonnes
4 Wheels
Wheels
AC Power
Power Source
500 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

The EDiA XL FB55N can handle loads up to 5.5 tonnes, making it a powerful electric alternative to traditional internal combustion forklifts.
Yes. With features like AutoBoost, sealed wet disc brakes, and high torque output, it performs exceptionally well in heavy-duty environments—indoors and out—without the emissions of an IC engine.
It includes a low-noise cabin (65 dBA), mini steering wheel, automatic speed control, and adaptive performance systems—all designed to reduce fatigue and boost safety on long shifts.
Thanks to smart energy management, regenerative braking, and maintenance-free brakes, the EDiA XL keeps running costs low and uptime high.
