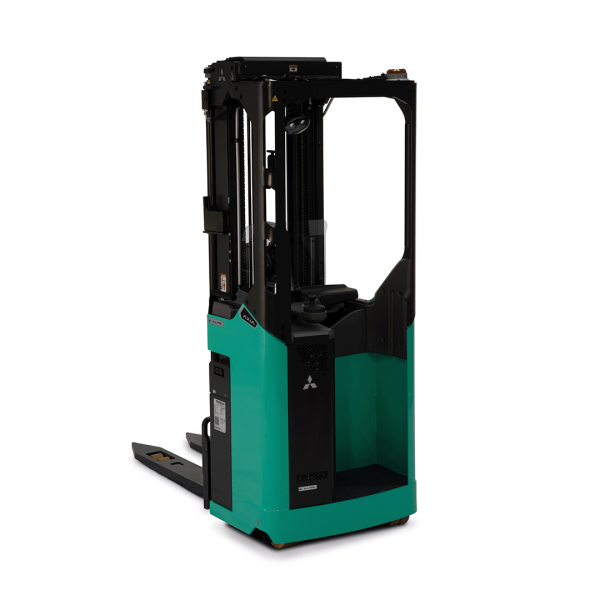

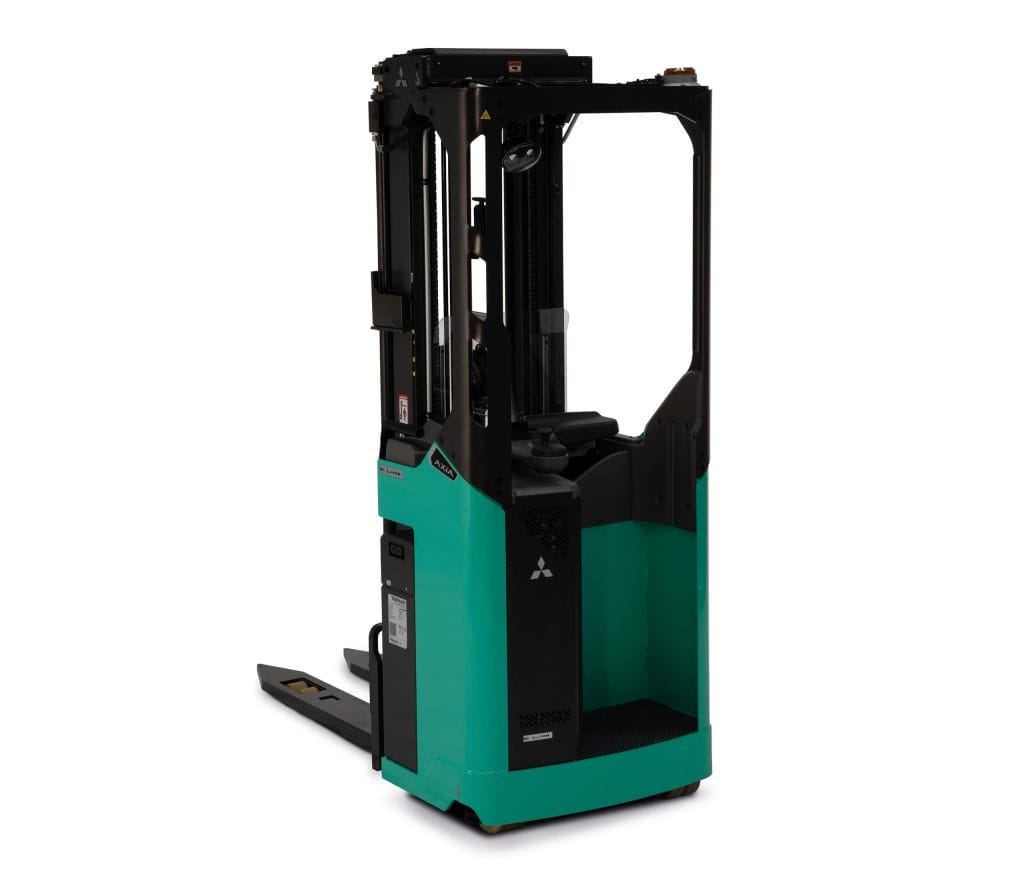

Axia EX (Stand-in)

New, Stackers
This stand-in stacker gives the operator full protection without taking up extra space. The cabin is enclosed for safety and visibility, and the truck can lift loads up to 7 metres high. It’s quick to handle and works well in narrow aisles.

Full Stand-In Design

By keeping the operator fully inside the truck, they are better protected from impacts. The enclosed design also allows for a more compact and nimble machine - ideal for tight aisles.

Auto Stability Assist

In addition to a high-stability chassis, built-in systems automatically limit acceleration during sharp turns and slow the truck when forks are raised above 1.7 metres.

Forward Travel Comfort Mode

When travelling long distances with forks trailing, this option lets the operator adopt a forward-facing standing position for improved comfort and reduced fatigue. (Optional)

Smart Cornering Assist

The truck detects the turning angle and gently reduces speed in advance. This keeps handling safe, stable, and predictable.

Fast-Charge Battery Option

Optional lithium-ion power gives you faster charging and zero maintenance - with no need to swap out heavy batteries.

Wide Straddle Frame

Models with wide straddle legs allow the forks to handle closed-bottom pallets and unusual loads. They also accommodate special attachments like clamps and rollers. Standard widths are 750 mm or 950 mm, with custom sizes available.

KEY FEATURES

Full Stand-In Design

By keeping the operator fully inside the truck, they are better protected from impacts. The enclosed design also allows for a more compact and nimble machine, ideal for tight aisles.

Auto Stability Assist

In addition to a high-stability chassis, built-in systems automatically limit acceleration during sharp turns and slow the truck when forks are raised above 1.7 metres.

Smart Cornering Assist

The truck detects the turning angle and gently reduces speed in advance. This keeps handling safe, stable, and predictable.

Fast-Charge Battery Option

Optional lithium-ion power gives you faster charging and zero maintenance, with no need to swap out heavy batteries.

Wide Straddle Frame

Models with wide straddle legs allow the forks to handle closed-bottom pallets and unusual loads. They also accommodate special attachments like clamps and rollers. Standard widths are 750 mm or 950 mm, with custom sizes available.

KEY FEATURES

This truck is perfect for...

Perfect for high-density warehouses that need fast stacking with added safety. If your team works around tight corners and high racking, this one fits the job.

Detailed specification

Model
SBR12N2
SBR12N2I
SBR16N2
SBR16N2I
SBR16N2S
SBR20N2
SBR20N2I
SBR20N2S
Power Source
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Operator Type
Stand-in
Stand-in
Stand-in
Stand-in
Stand-in
Stand-in
Stand-in
Stand-in
Load Capacity (kg)
1250 kg
1250 kg
1600 kg
1600 kg
1600 kg
2000 kg
2000 kg
2000 kg
Load Centre Distance (mm)
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
Load Distance - Axle to Forkface (mm)
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
Wheelbase (mm)
1422 mm
1501 mm
1496 mm
1541 mm
1536 mm
1545 mm
1600 mm
1576 mm
Model
SBR12N2
SBR12N2I
SBR16N2
SBR16N2I
SBR16N2S
SBR20N2
SBR20N2I
SBR20N2S
Unladen Weight (kg)
2682 kg
2876 kg
3356 kg
3506 kg
1605 kg
4018 kg
4184 kg
1967 kg
Axle Loading w/ Maximum Load - front/rear (kg)
1127 / 1555 kg
1263 / 1613 kg
1389 / 1967 kg
1494 / 2012 kg
1284 / 1922 kg
1613 / 2405 kg
1729 / 2455 kg
1577 / 2390 kg
Axle Loading no Load - front/rear (kg)
1002 / 430 kg
1138 / 488 kg
1229 / 527 kg
1334 / 572 kg
1124 / 482 kg
1413 / 605 kg
1529 / 655 kg
1377 / 590 kg
Model
SBR12N2
SBR12N2I
SBR16N2
SBR16N2I
SBR16N2S
SBR20N2
SBR20N2I
SBR20N2S
Tyres
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Front Tyre Dimensions
250 Ă— 105 mm
250 Ă— 105 mm
250 Ă— 105 mm
250 Ă— 105 mm
250 Ă— 105 mm
250 Ă— 105 mm
250 Ă— 105 mm
250 Ă— 105 mm
Rear Tyre Dimensions
85 x 70 mm
85 x 70 mm
85 x 70 mm
85 x 70 mm
85 x 70 mm
85 x 70 mm
85 x 70 mm
85 x 70 mm
No. of Wheels
4 / 1Ă— + 2
1Ă— / 2
4 / 1Ă— + 2
4 / 1Ă— + 2
4 / 1Ă— + 2
4 / 1Ă— + 2
4 / 1Ă— + 2
4 / 1Ă— + 2
Truck Width (centre of tyres, front) mm
662 mm
662 mm
662 mm
662 mm
651 mm
662 mm
651 mm
651 mm
Truck Width (centre of tyres, rear) mm
402 mm
309 mm
402 mm
390 mm
985 / 1185 mm
392 mm
375 mm
985 / 1185 mm

Which truck is right for you?

AXiA EX (Stand-in) SBR12-20N2 section-min

SBR12N2

1.2 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA EX (Stand-in) SBR12-20N2 section-min

SBR12N2I

1.2 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA EX (Stand-in) SBR12-20N2 section-min

SBR16N2

1.6 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA EX (Stand-in) SBR12-20N2 section-min

SBR16N2I

1.6 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA EX (Stand-in) SBR12-20N2 section-min

SBR16N2S

1.6 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA EX (Stand-in) SBR12-20N2 section-min

SBR20N2

2.0 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA EX (Stand-in) SBR12-20N2 section-min

SBR20N2I

2.0 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
AXiA EX (Stand-in) SBR12-20N2 section-min

SBR20N2S

2.0 Tonne
Tonnes
7 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

It offers better operator protection and comfort, while also making the truck more compact – perfect for working in narrow aisles.
Yes. Wide straddle models let you work with closed-bottom pallets and accept attachments like clamps and rollers.
Yes. It automatically reduces speed during sharp turns and when lifting at higher levels, helping keep loads stable.
Yes, as an option. It offers quick charging and removes the need for battery maintenance or changeovers.

Find Your Forklift

Where will the truck mainly operate?
Operating Area
What space are you working in?
Working Space
What are you moving?
Objects Moving
How high are you lifting?
Height of Operation

Find Your Forklift

Where will the truck mainly operate?
Operating Area
What space are you working in?
Working Space
What are you moving?
Objects Moving
How high are you lifting?
Height of Operation
