Axia EM

New, Stackers

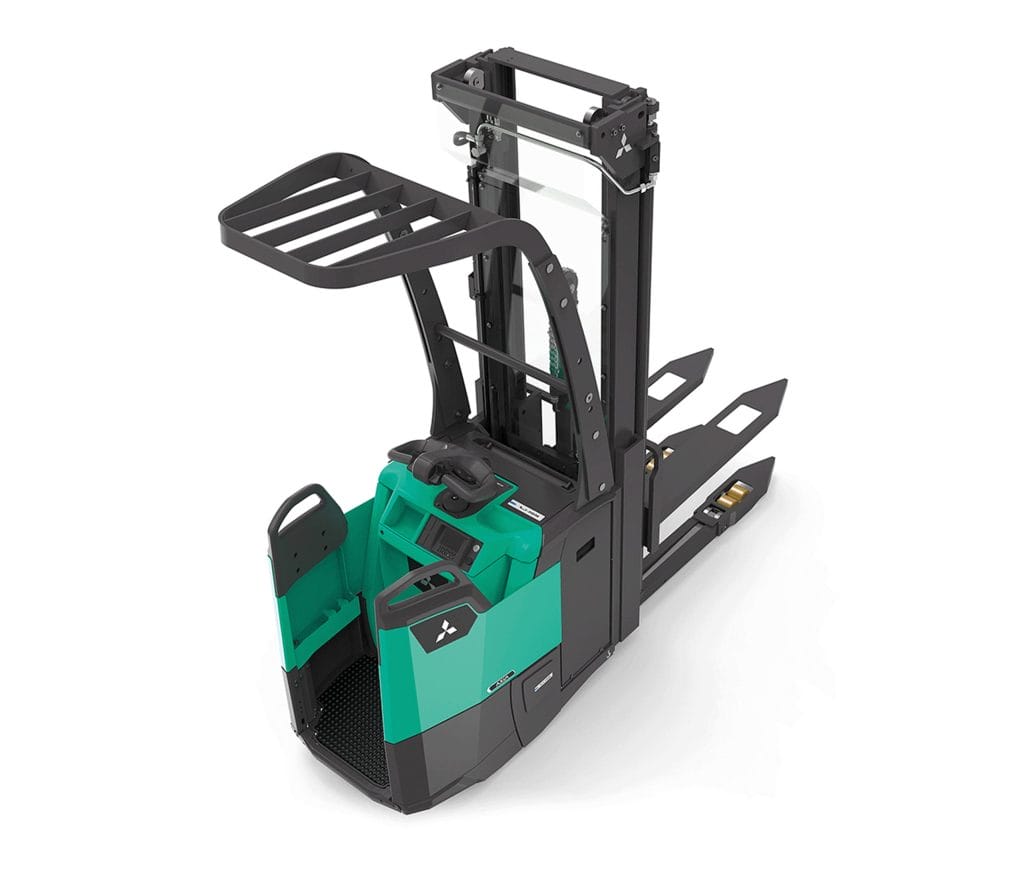

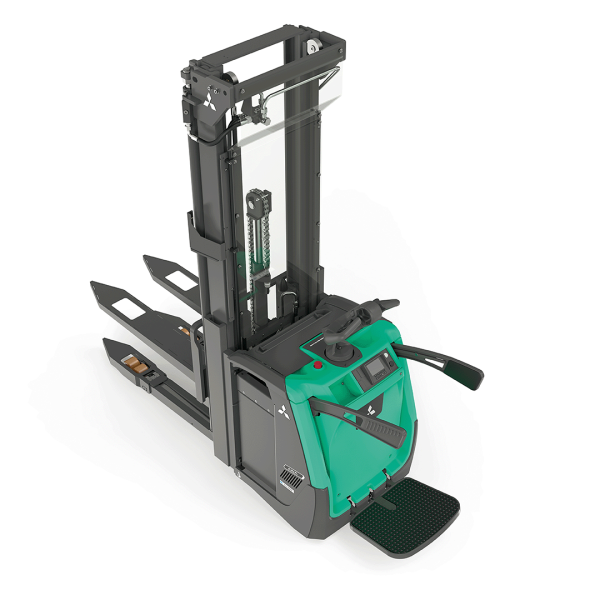

The AXiA EM platform stackers are a step up in power and flexibility. You can use them on foot or ride along with the fold-out platform. They’re quick, responsive, and designed for longer runs through busier warehouses. Cornering is smooth and the load weight sensors help with stable stacking.

Built for Tight Spaces

Its narrow, compact frame makes it easy to manoeuvre through tight aisles - freeing up storage space and reducing the chance of bumps or damage.

Performance Modes for Every Operator

Choose from PRO, ECO, or Easy mode. PRO delivers peak performance. ECO extends battery life. Easy offers smoother handling for newer operators.

Comfort-Grip Control Handle

The sealed, weather-rated tiller head puts large, simple controls right where you need them - helping reduce strain and fatigue on long shifts.

Smart Corner Speed Control

The truck automatically reduces speed when turning, based on steer angle. This helps keep handling smooth and stable while protecting tyres.

Quick-Charge Battery Option

Optional lithium-ion power gives you fast charging and zero maintenance - no extra batteries, no swap-outs, and more uptime.

KEY FEATURES

Built for Tight Spaces

Its narrow, compact frame makes it easy to manoeuvre through tight aisles, freeing up storage space and reducing the chance of bumps or damage.

Performance Modes for Every Operator

Choose from PRO, ECO, or Easy mode. PRO delivers peak performance. ECO extends battery life. Easy offers smoother handling for newer operators.

Comfort-Grip Control Handle

The sealed, weather-rated tiller head puts large, simple controls right where you need them — helping reduce strain and fatigue on long shifts.

Smart Corner Speed Control

The truck automatically reduces speed when turning, based on steer angle. This helps keep handling smooth and stable while protecting tyres.

Quick-Charge Battery Option

Optional lithium-ion power gives you fast charging and zero maintenance, no extra batteries, no swap-outs, and more uptime.

KEY FEATURES

This truck is perfect for...

Ideal for warehouses and logistics teams handling larger spaces and mixed workloads. If your team moves between walking and riding, this stacker helps keep things efficient.

Detailed specification

Model
SBV12N3
SBV12N3I
SBF12N3R
SBF12N3S
SBF12N3IR
SBF12N3IS
SBV16N3
SBV16N3I
SBV16N3S
SBF16N3R
SBF16N3S
SBF16N3IR
SBF16N3IS
SBF16N3SR
SBF16N3SS
Power Source
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Electric
Operator Type
Pedestrian / Stand-on
Pedestrian / Stand-on
Stand-on
Stand-on
Stand-on
Stand-on
Pedestrian / Stand-on
Pedestrian / Stand-on
Stand-on
Stand-on
Stand-on
Stand-on
Stand-on
Pedestrian / Stand-on
Stand-on
Load Capacity (kg)
1250 kg
1250 kg
1250 kg
1250 kg
1250 kg
1250 kg
1600 kg
1600 kg
1600 kg
1600 kg
1600 kg
1600 kg
1600 kg
1600 kg
1600 kg
Load Centre Distance (mm)
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
600 mm
Load Distance - Axle to Forkface (mm)
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
800 mm
Wheelbase (mm)
1429 mm
1503 mm
1429 mm
1429 mm
1503 mm
1503 mm
1503 mm
1533 mm
1503 mm
1503 mm
1503 mm
1533 mm
1533 mm
1543 mm
1543 mm
Model
SBV12N3
SBV12N3I
SBF12N3R
SBF12N3S
SBF12N3IR
SBF12N3IS
SBV16N3
SBV16N3I
SBV16N3S
SBF16N3R
SBF16N3S
SBF16N3IR
SBF16N3IS
SBF16N3SR
SBF16N3SS
Unladen Weight (kg)
1350 kg
1450 kg
1420 kg
1420 kg
1520 kg
1520 kg
1560 kg
1660 kg
1580 kg
1600 kg
1600 kg
1730 kg
1730 kg
1650 kg
1650 kg
Axle Loading w/ Maximum Load - front/rear (kg)
1005 / 1410 kg
1020 / 1495 kg
N/A
N/A
N/A
N/A
N/A
1235 / 1975 kg
1320 / 1845 kg
1320 / 1835 kg
1320 / 1835 kg
1355 / 1895 kg
1355 / 1895 kg
N/A
N/A
Axle Loading no Load - front/rear (kg)
825 / 310 kg
855 / 375 kg
N/A
N/A
N/A
N/A
N/A
1095 / 485 kg
1025 / 0425 kg
1130 / 390 kg
1130 / 390 kg
1175 / 445 kg
1175 / 445 kg
N/A
N/A
Model
SBV12N3
SBV12N3I
SBF12N3R
SBF12N3S
SBF12N3IR
SBF12N3IS
SBV16N3
SBV16N3I
SBV16N3S
SBF16N3R
SBF16N3S
SBF16N3IR
SBF16N3IS
SBF16N3SR
SBF16N3SS
Tyres
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Vul (Vulkollan)
Front Tyre Dimensions
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
235 × 75 mm
Rear Tyre Dimensions
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
85 × 76 mm
No. of Wheels
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
4 / 1× + 1
Truck Width (centre of tyres, front) mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
497 mm
Truck Width (centre of tyres, rear) mm
402 mm
390 mm
402 mm
402 mm
390 mm
390 mm
402 mm
390 mm
985 / 1185 mm
402 mm
402 mm
390 mm
390 mm
985 / 1185 mm
985 / 1185 mm

Which truck is right for you?

VELiA ES updated mid

SBV12N3

1250 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBV12N3I

1250 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF12N3R

1250 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF12N3S

1250 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF12N3IR

1250 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF12N3IS

1250 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBV16N3

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBV16N3I

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBV16N3S

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF16N3R

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF16N3S

1600 kg
Tonnes
6 Wheels
Wheels
AC Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF16N3IR

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF16N3IS

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF16N3SR

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre
VELiA ES updated mid

SBF16N3SS

1600 kg
Tonnes
6 Wheels
Wheels
AC-Power
Power Source
600 mm
Load Centre

Jofson have supported us for years. Their service is consistent, reliable, and personal — which is exactly what we expect from our own suppliers. That kind of long-term commitment is why we keep coming back.

Jamie Fell

Transport Manager

Whatever you need, we can deliver

Frequently Asked Questions

The SBV is a platform stacker for pedestrian use. The SBF adds foldable operator platforms and side arms for longer travel runs and better operator comfort.
No, it’s an optional feature. If chosen, it allows faster charging and removes the need for battery maintenance or replacement.
Yes. Its compact design and smooth handling make it ideal for tight storage areas and small turning spaces.
Easy mode suits new drivers. ECO helps stretch out time between charges. PRO gives maximum performance when you need full power.
